LED Matrix & Arduino Fun.

32×20 6mm WS2801 RGB LED Pixel Matrix

Taijiuino Due (Arduino Due clone) driving 32×20 (3 rows still missing, though) WS2801 RGB LED pixel matrix from DMX512 on Art-Net ethernet input. Software: GCC, ASF, lwIP, FreeRTOS. Animations generated by Solderlab’s great Glediator software.

Watch the video on Youtube.

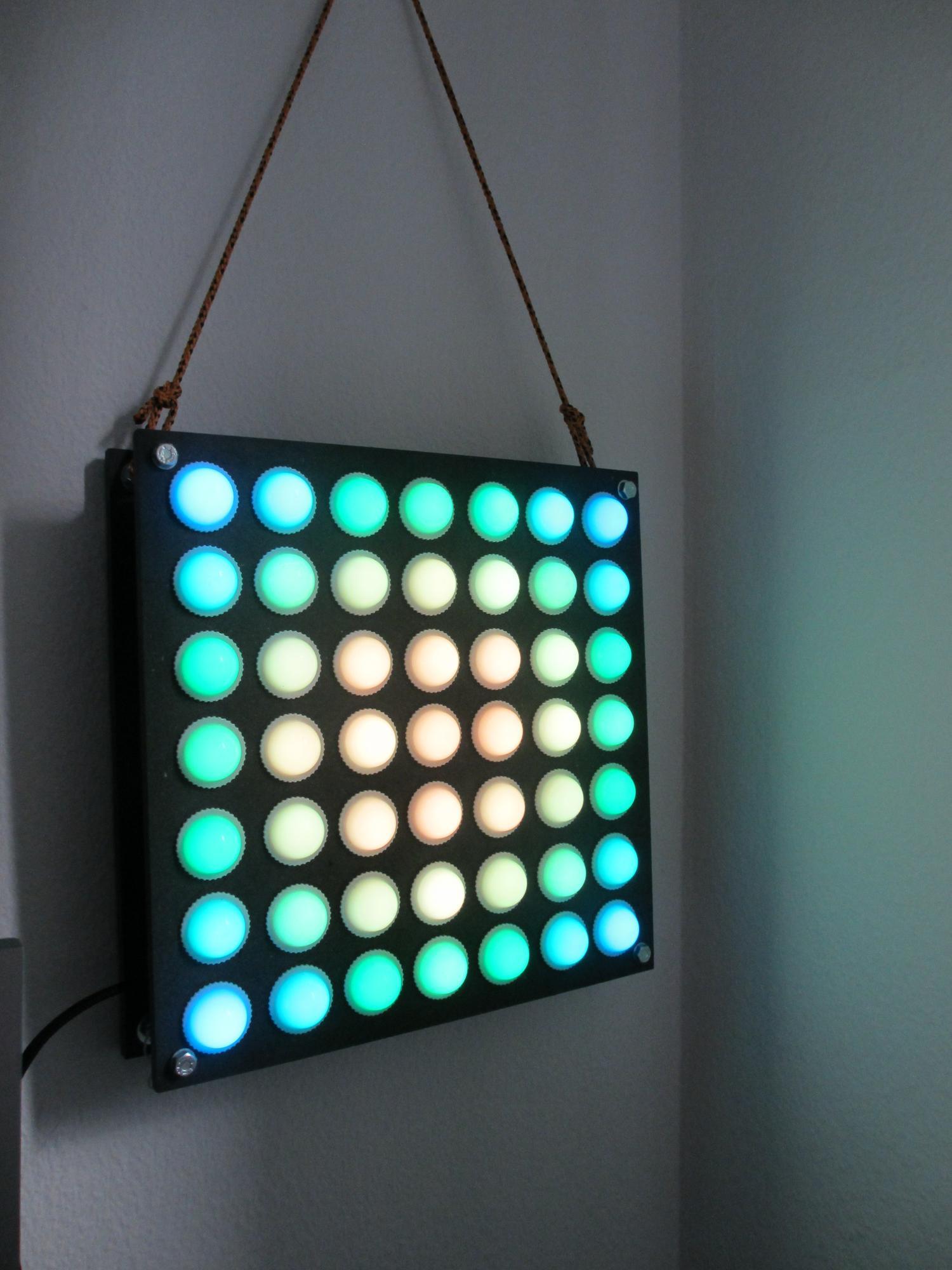

7×7 26mm WS2801 LED Pixel Matrix

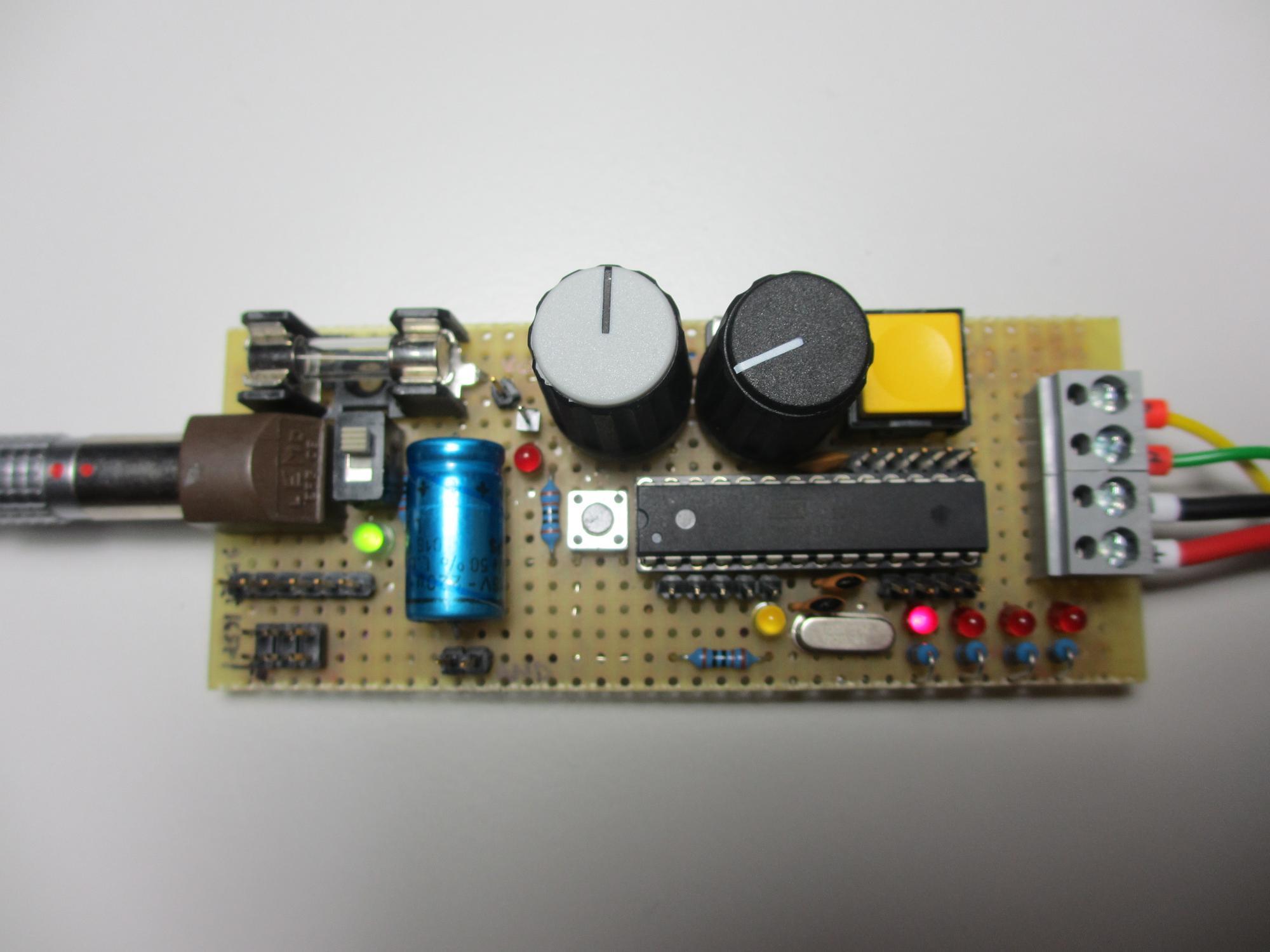

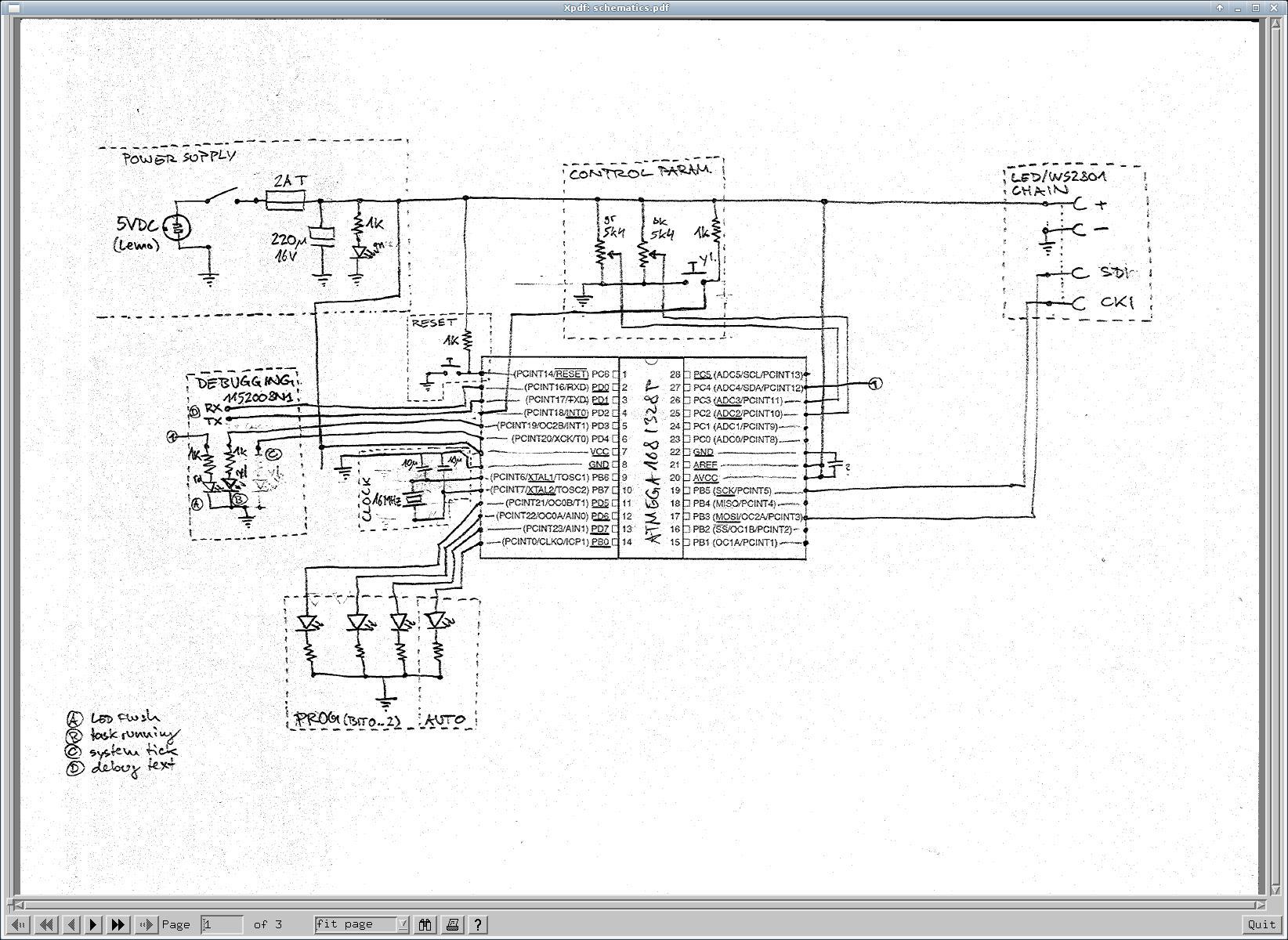

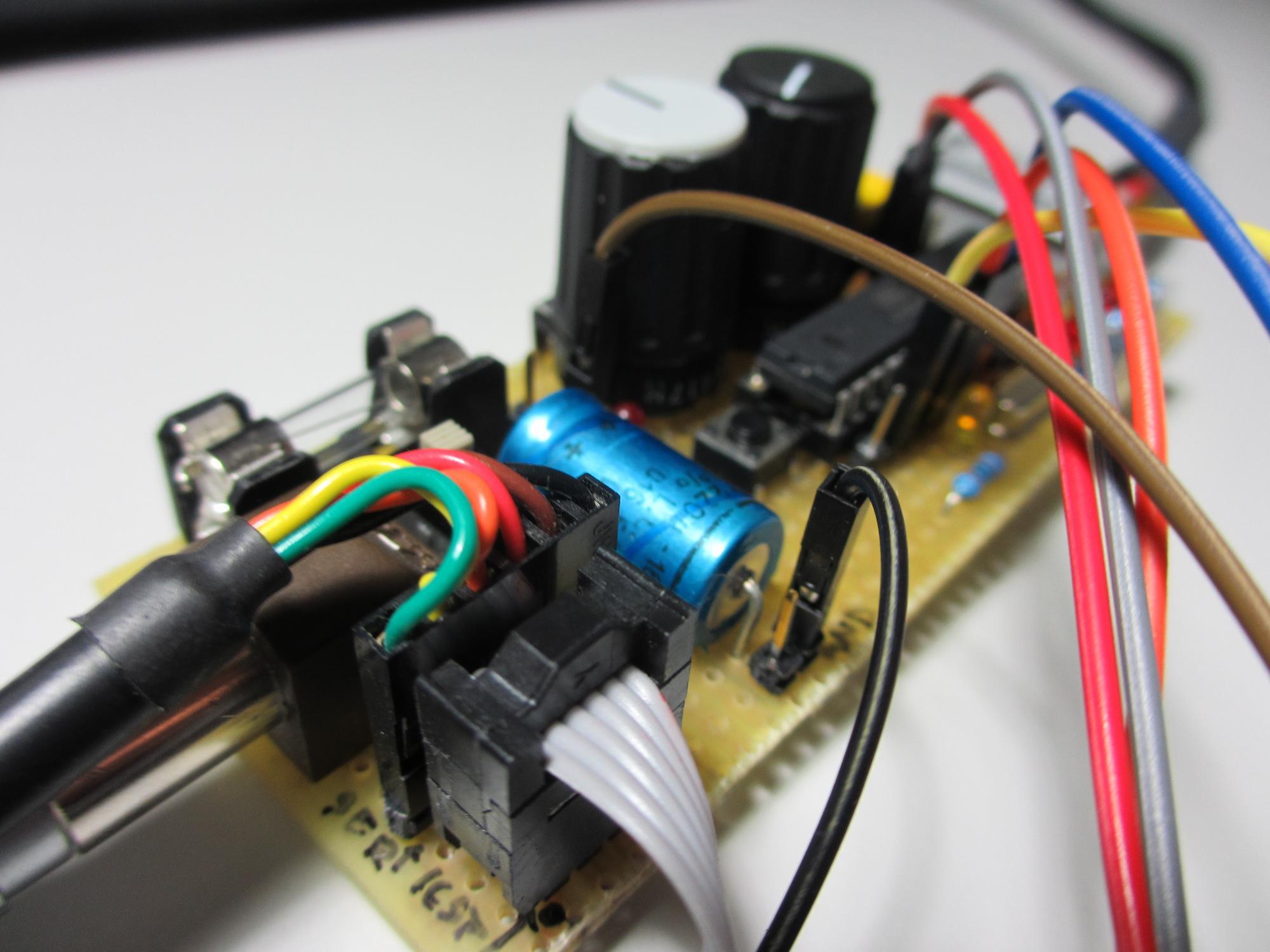

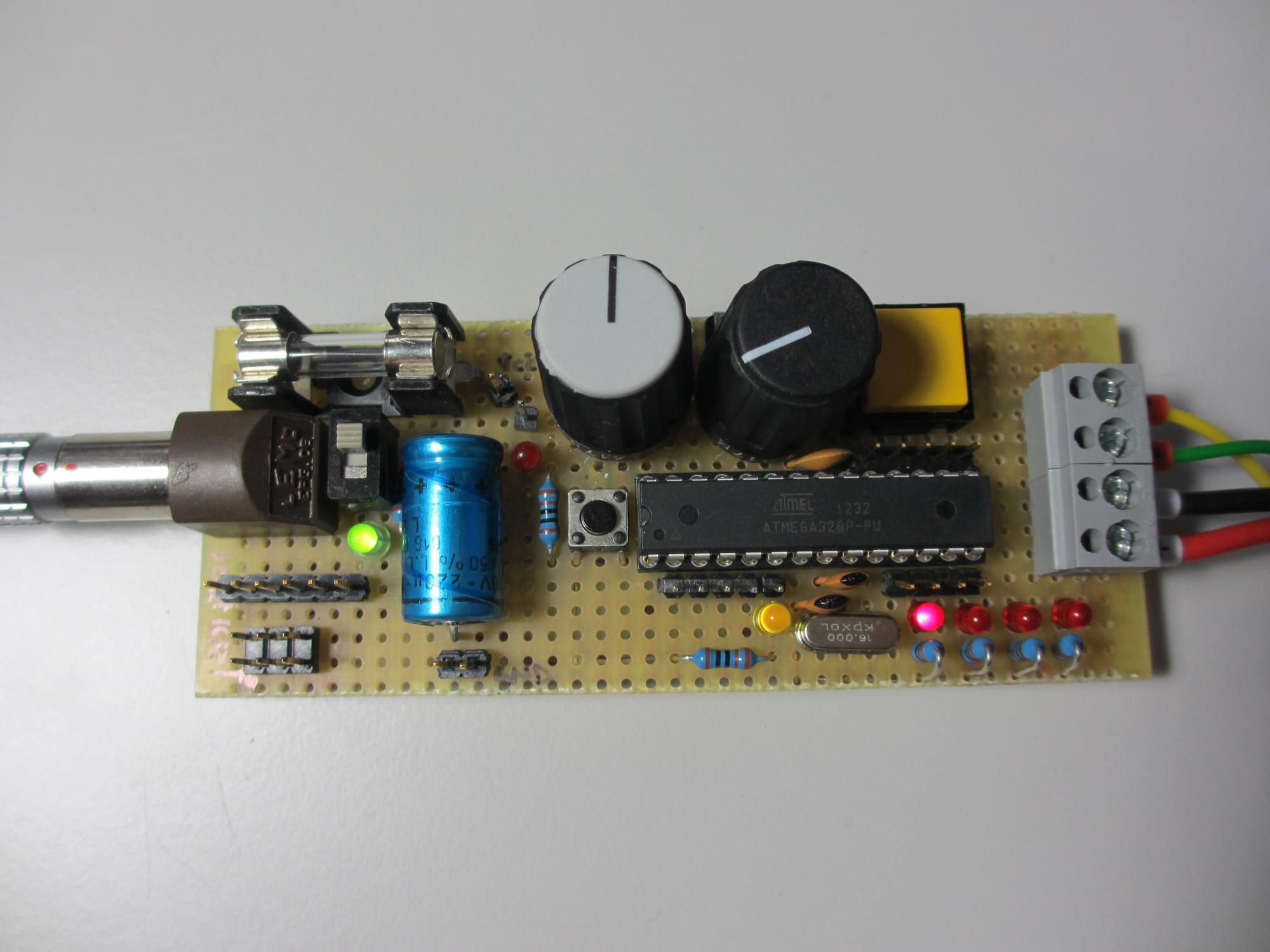

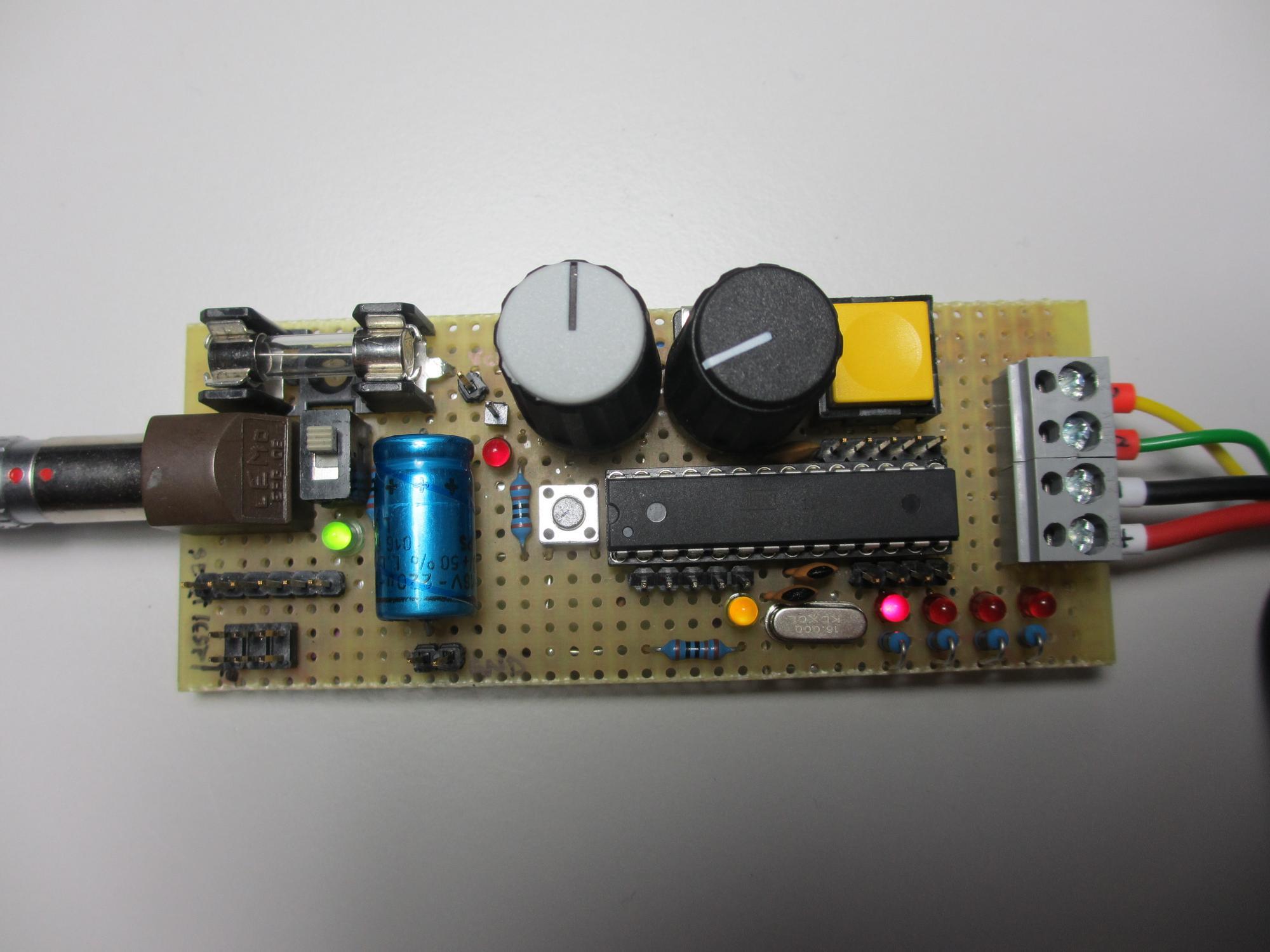

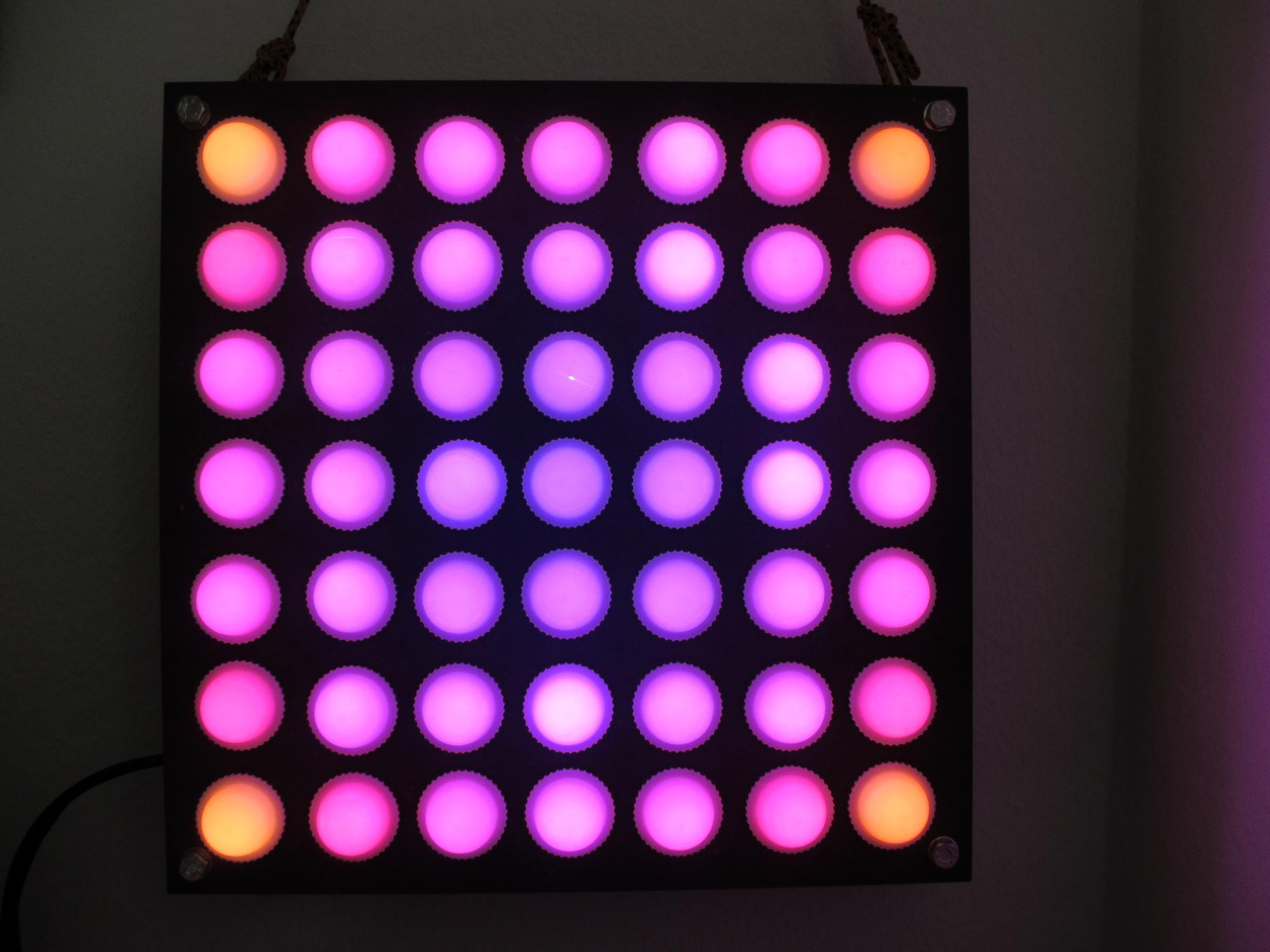

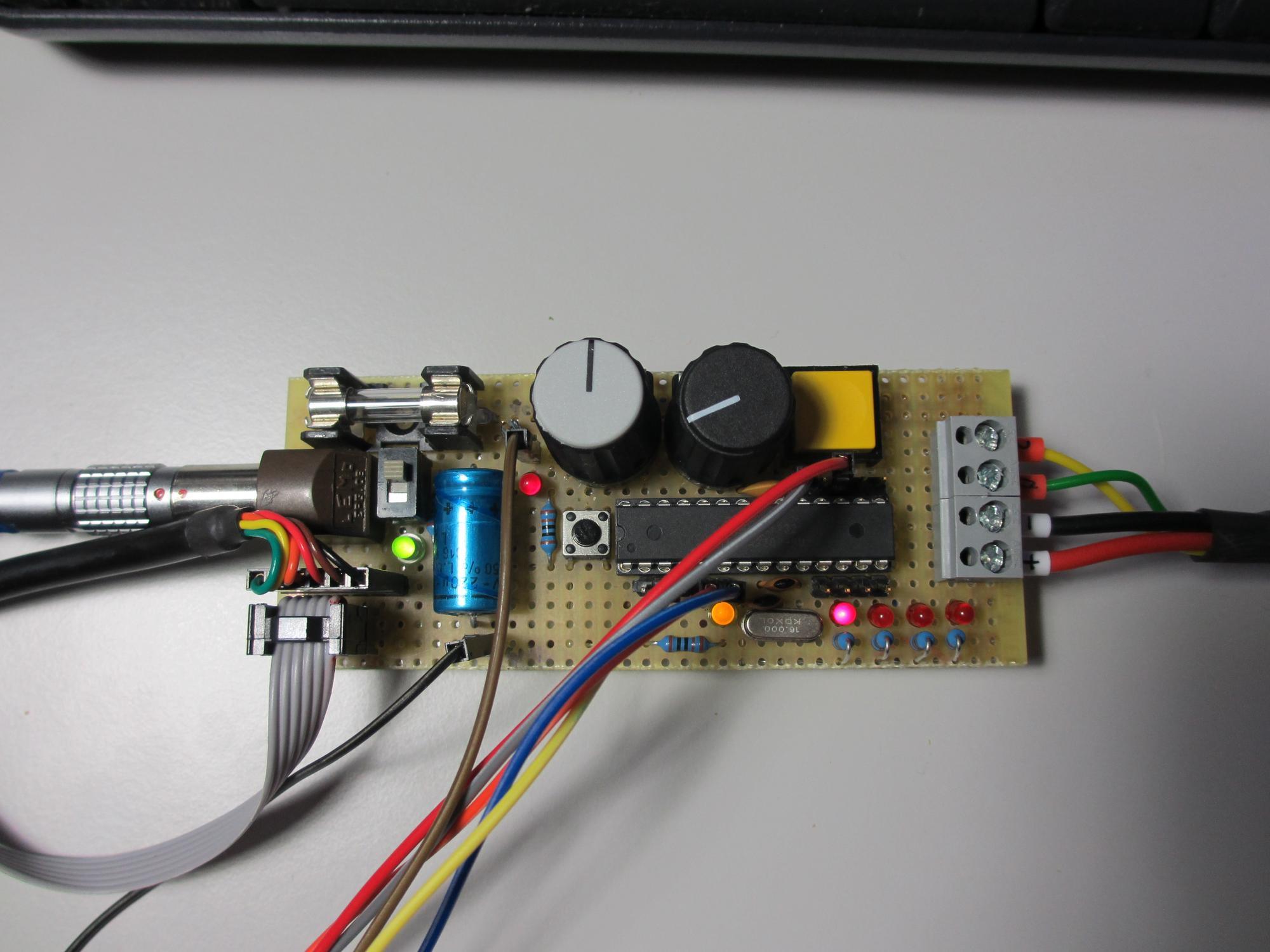

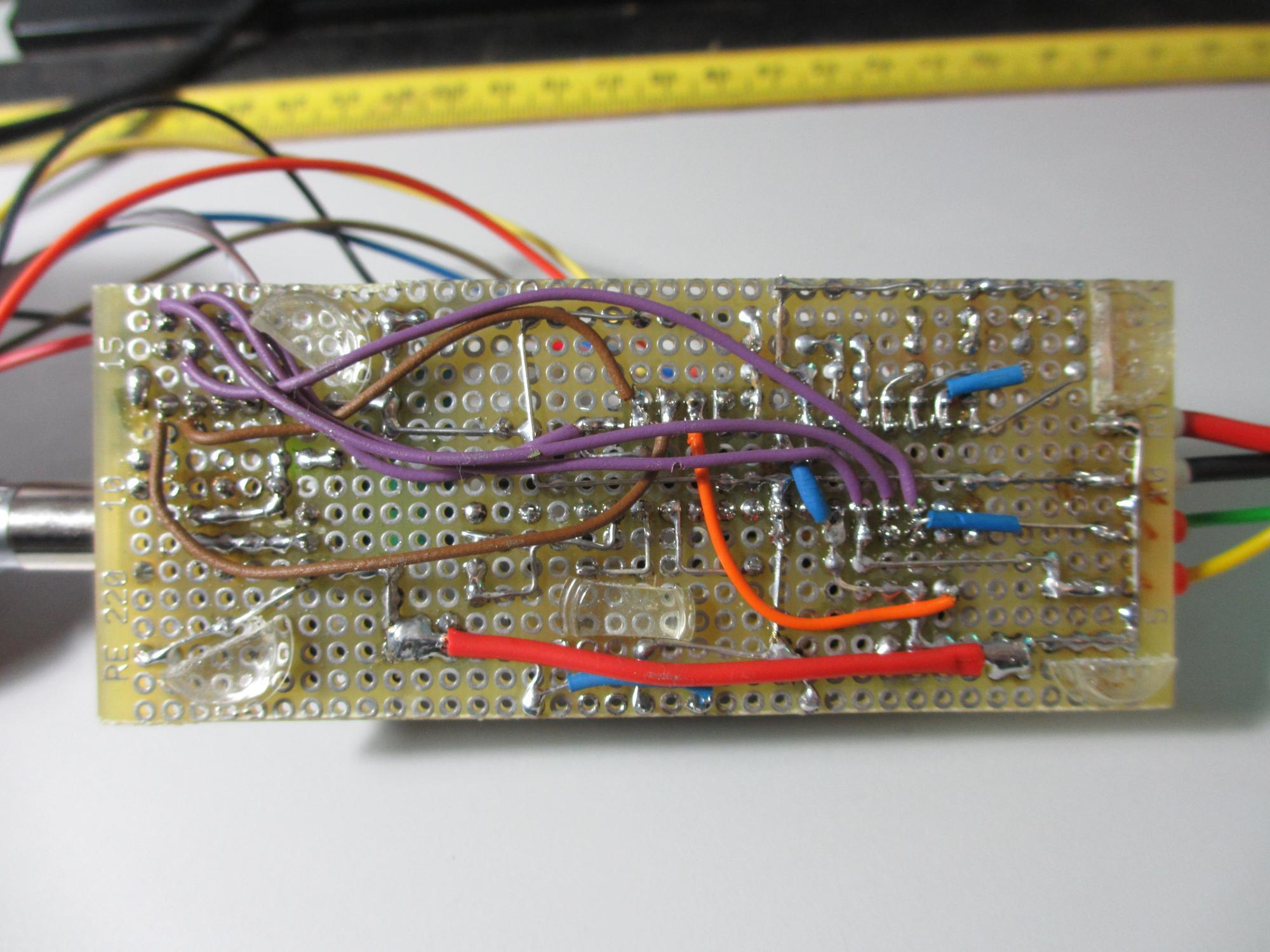

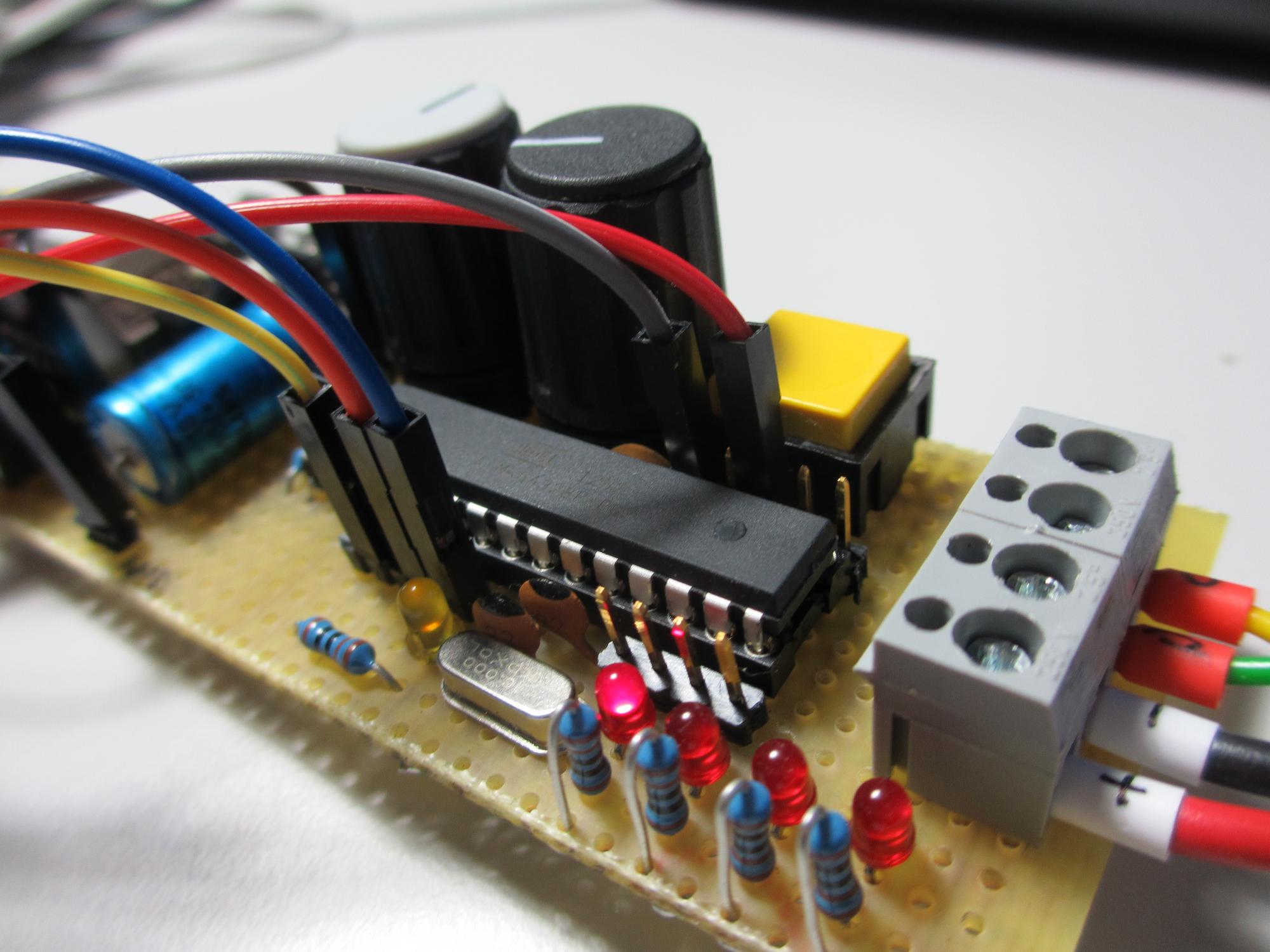

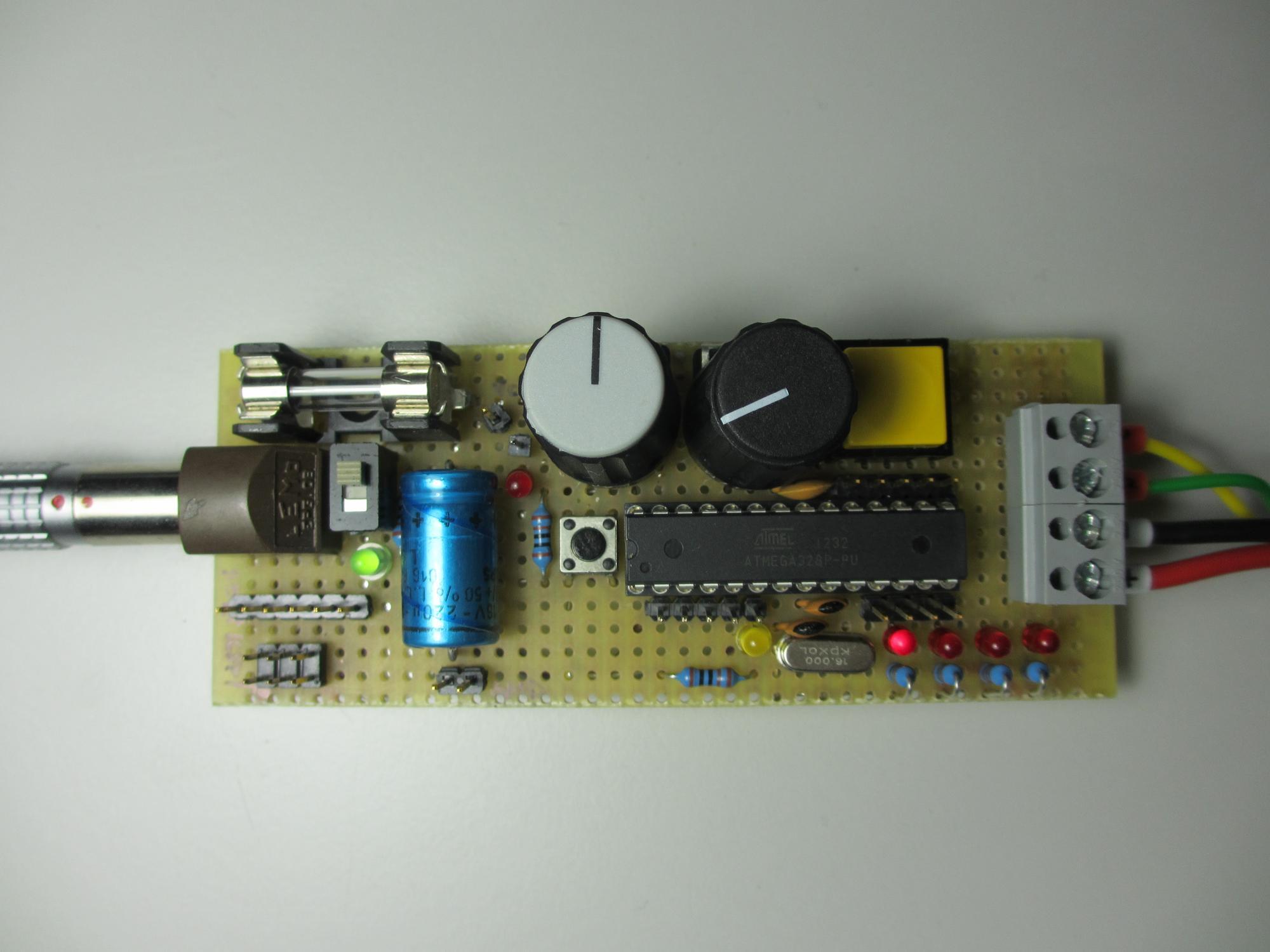

Controlled by ATmega328P (same as on some Arduino Uno). This is part of my Arduino Uno Stuff.

Watch the video on Youtube.

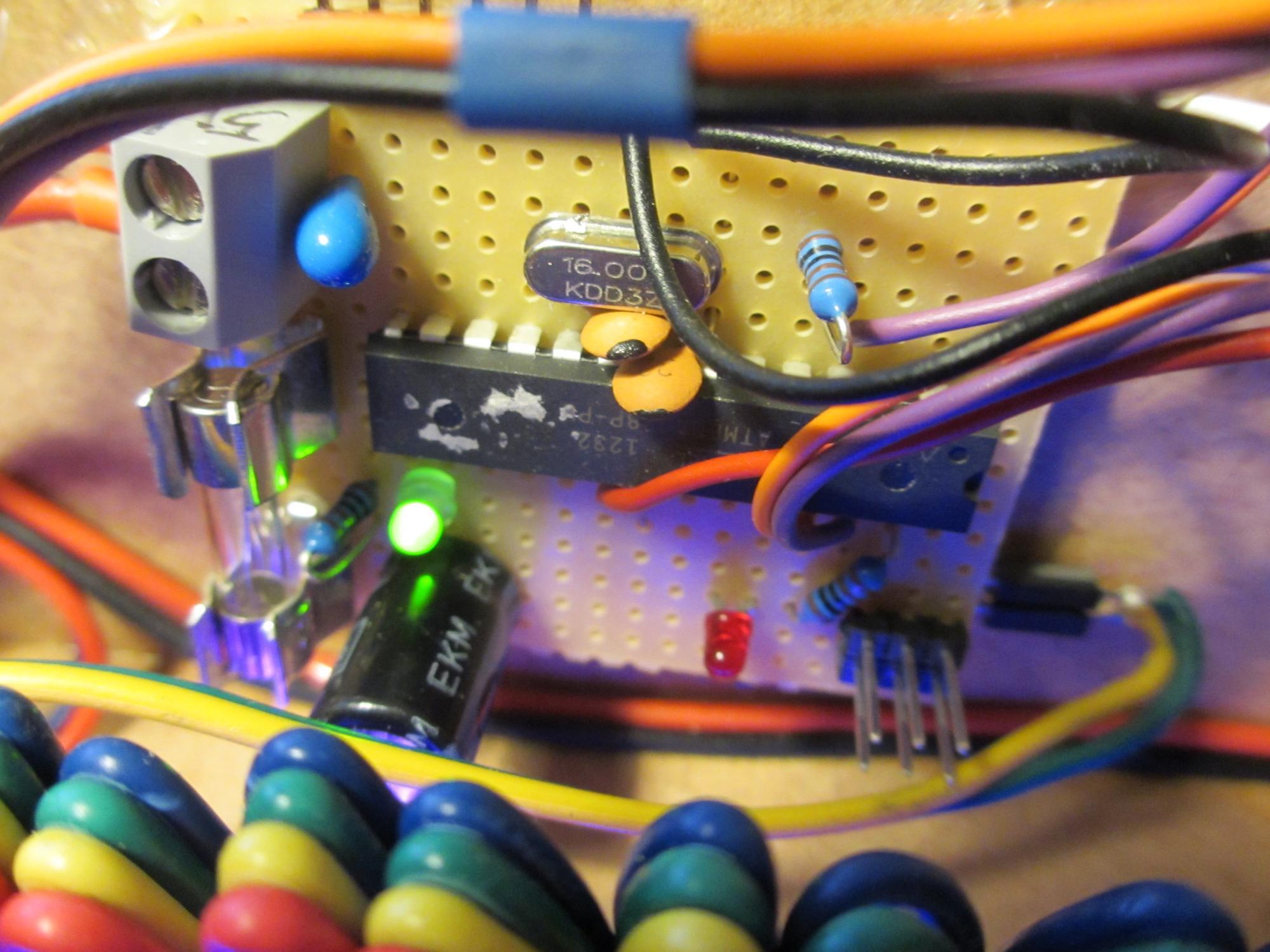

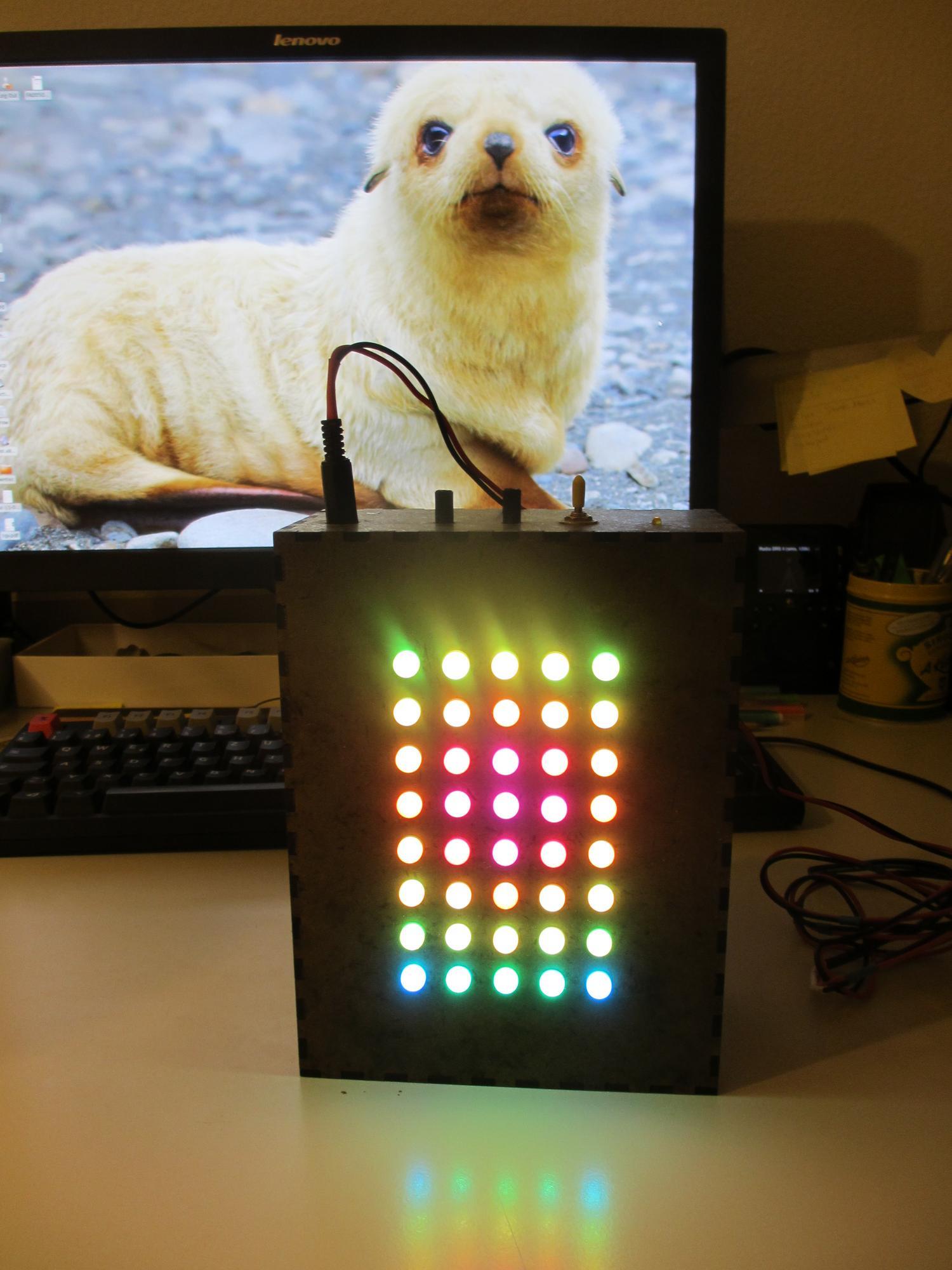

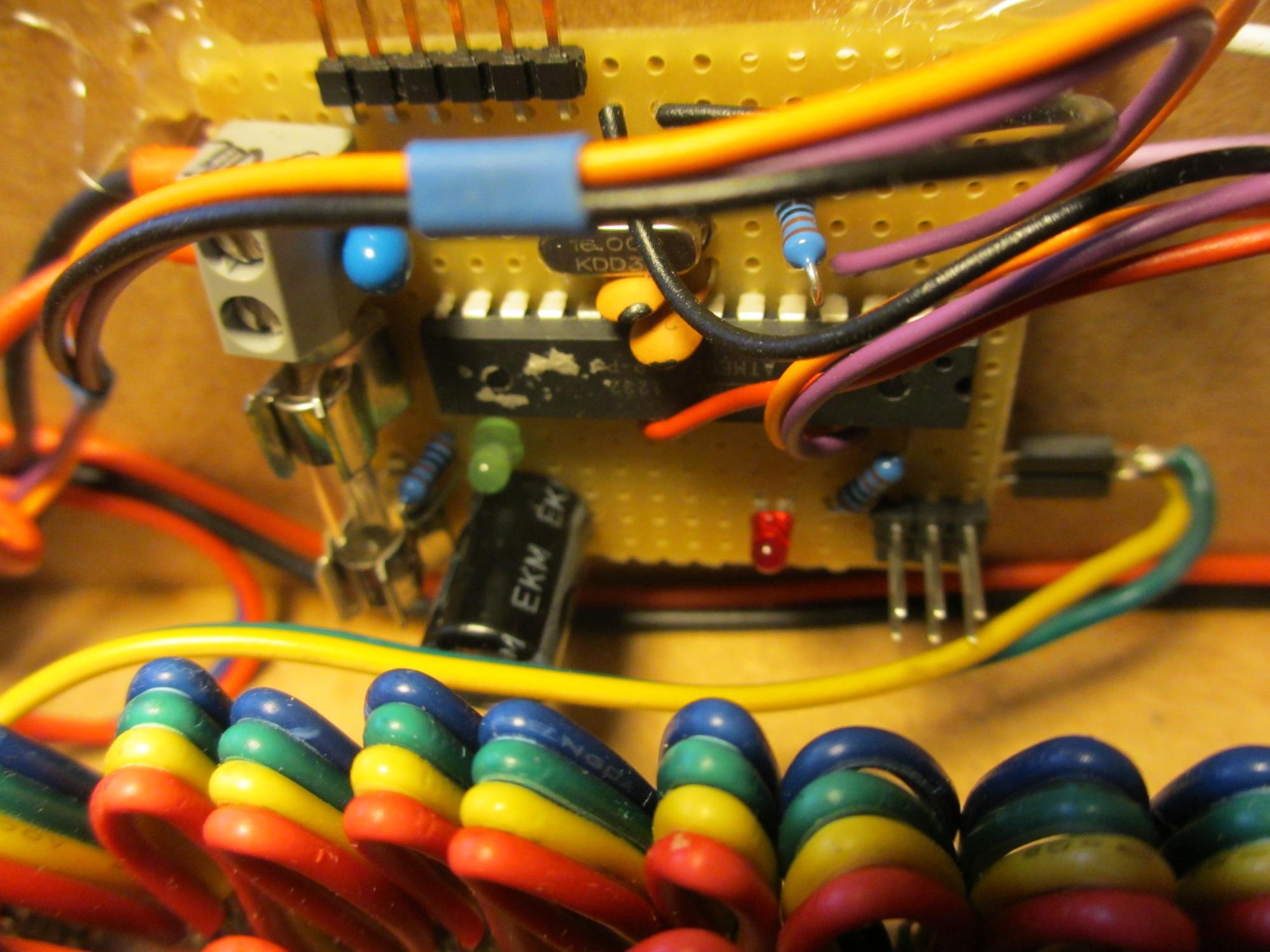

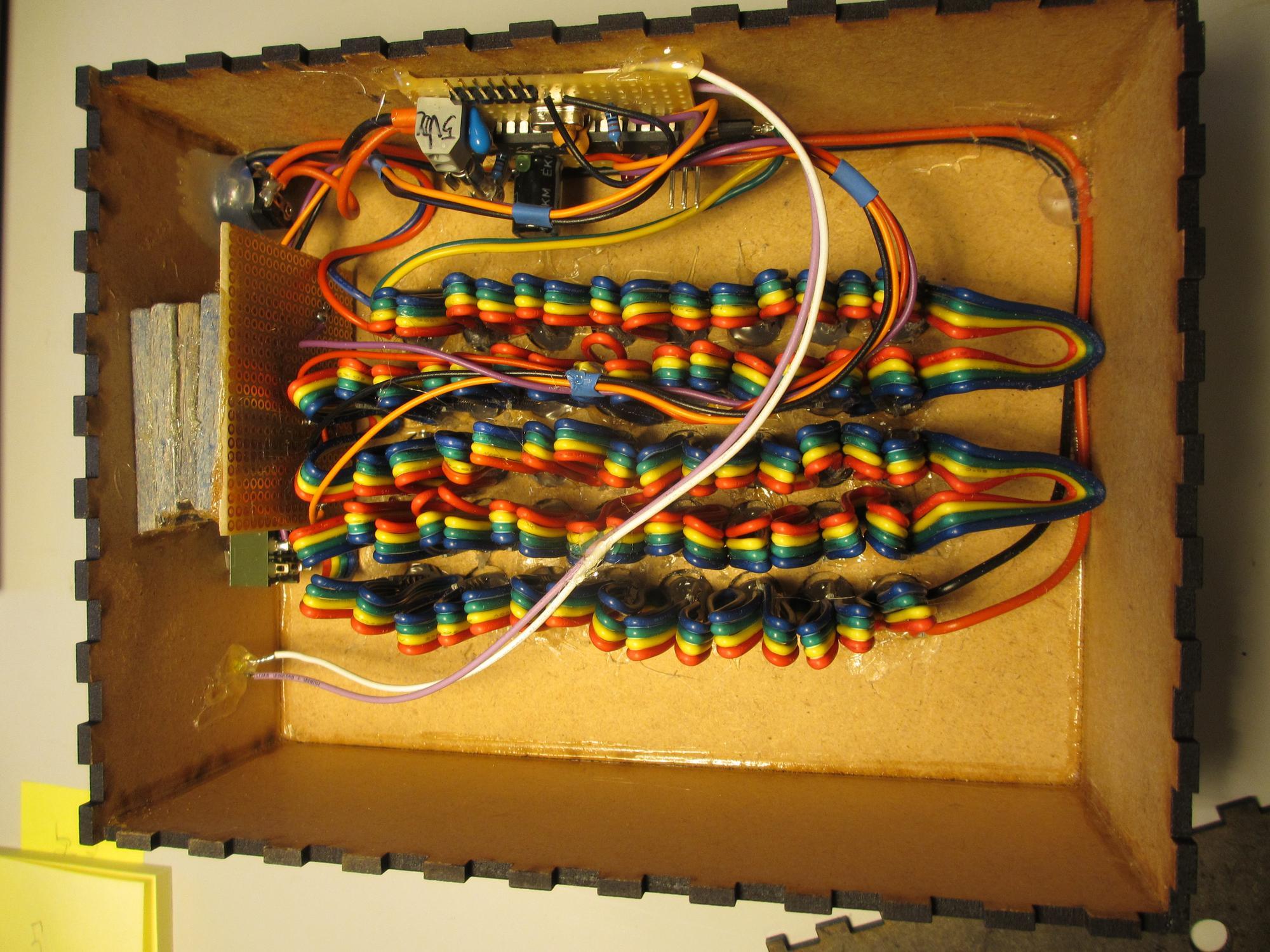

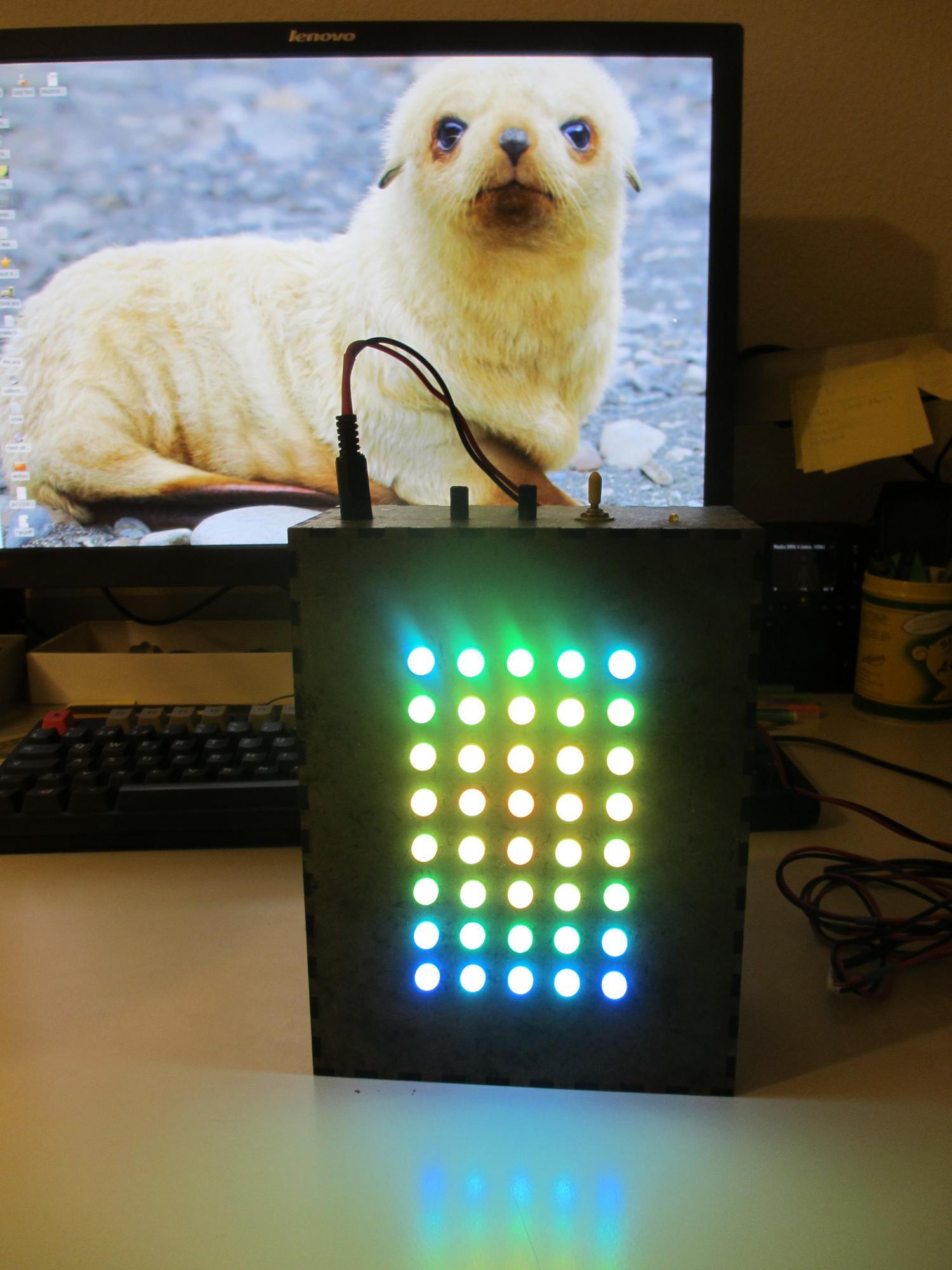

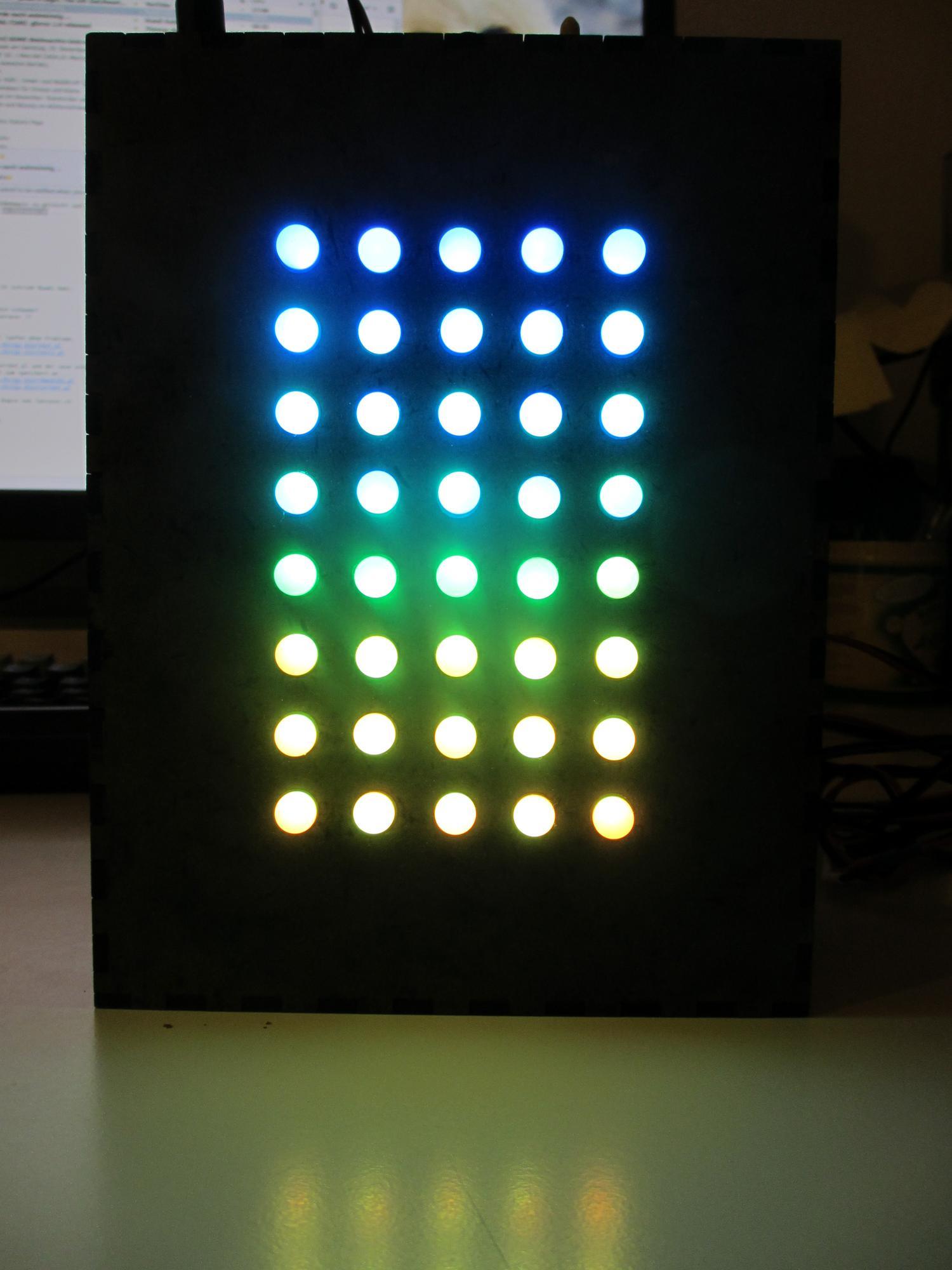

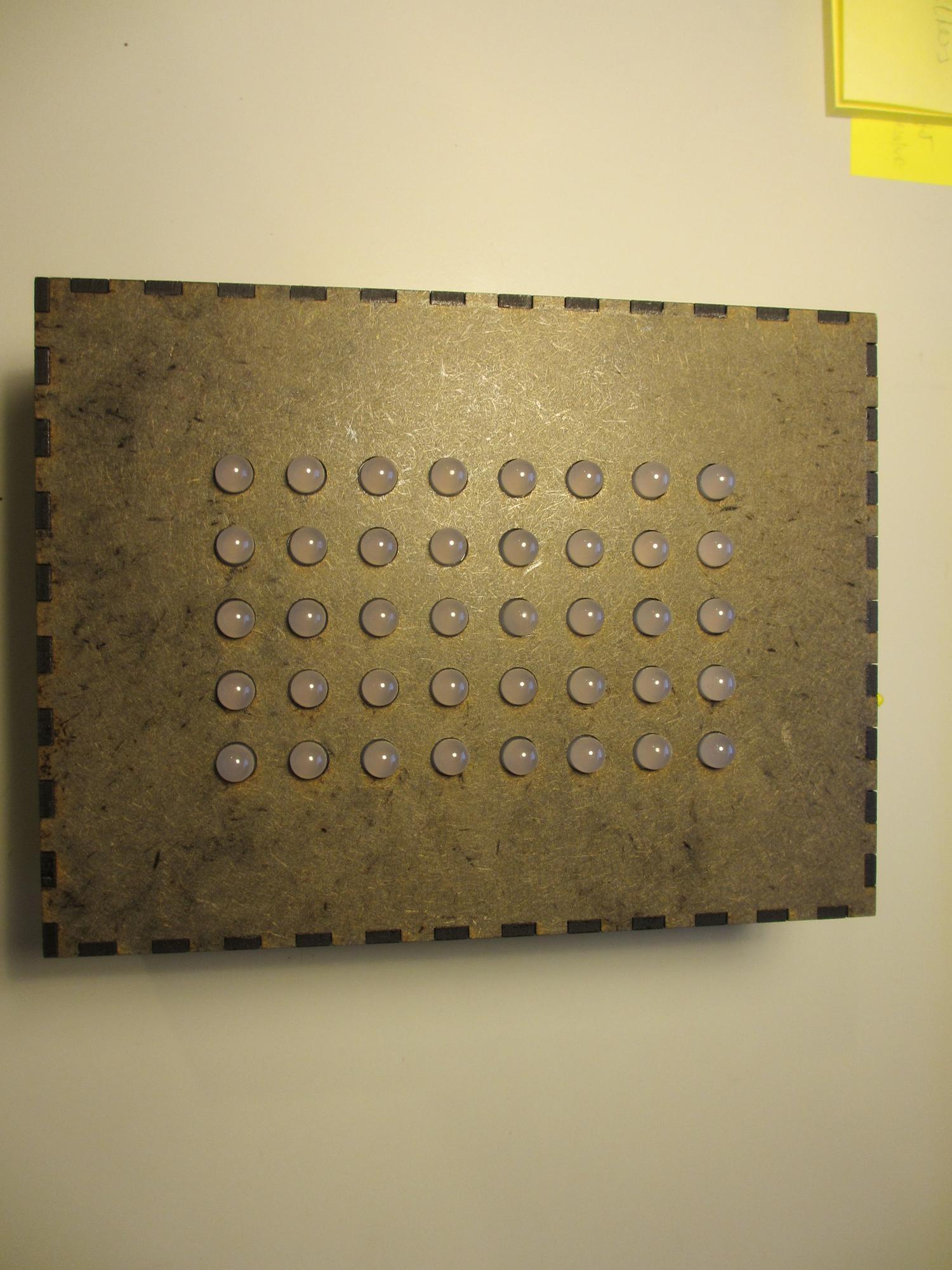

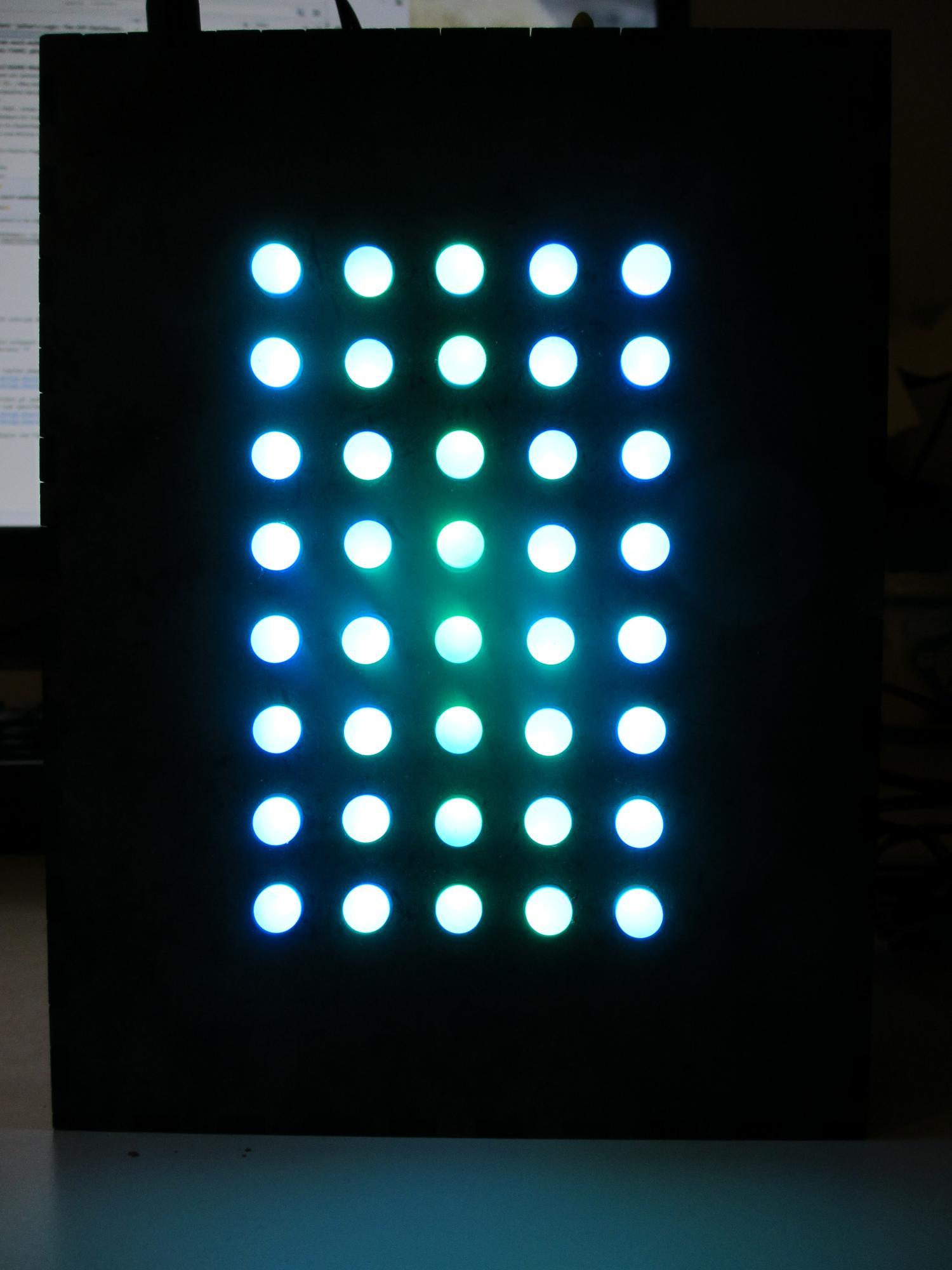

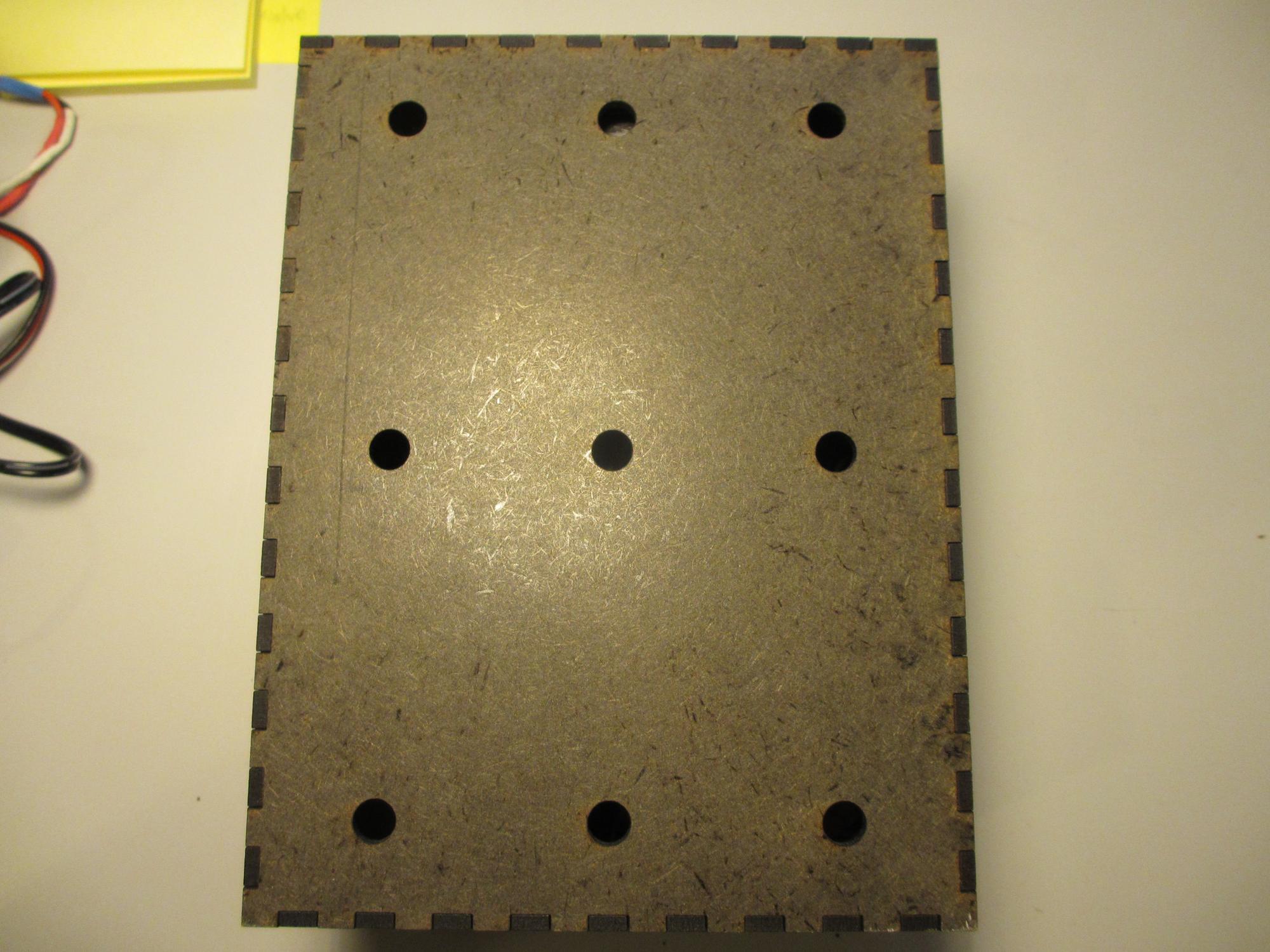

5×8 6mm WS2801 LED Pixel Matrix

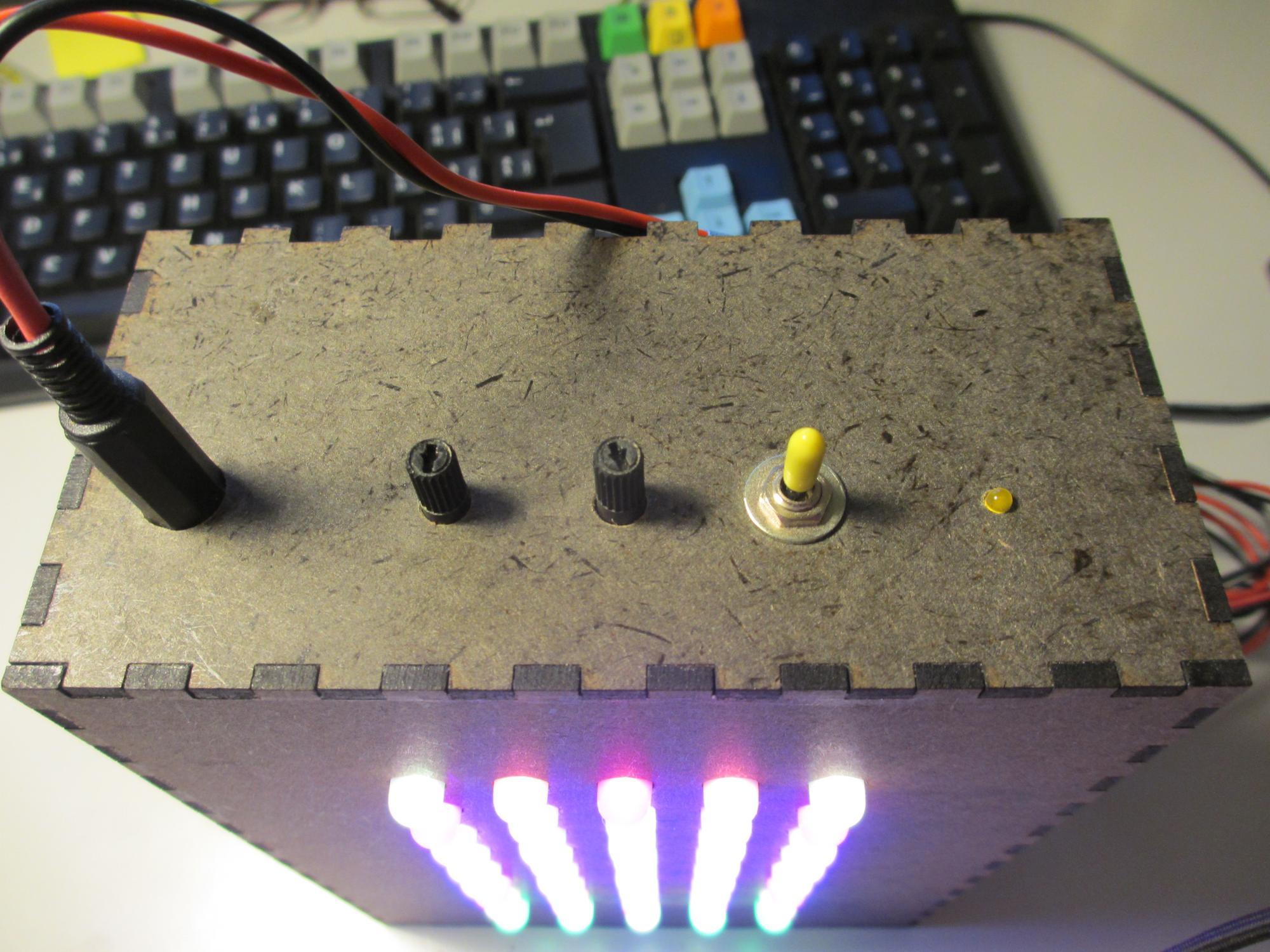

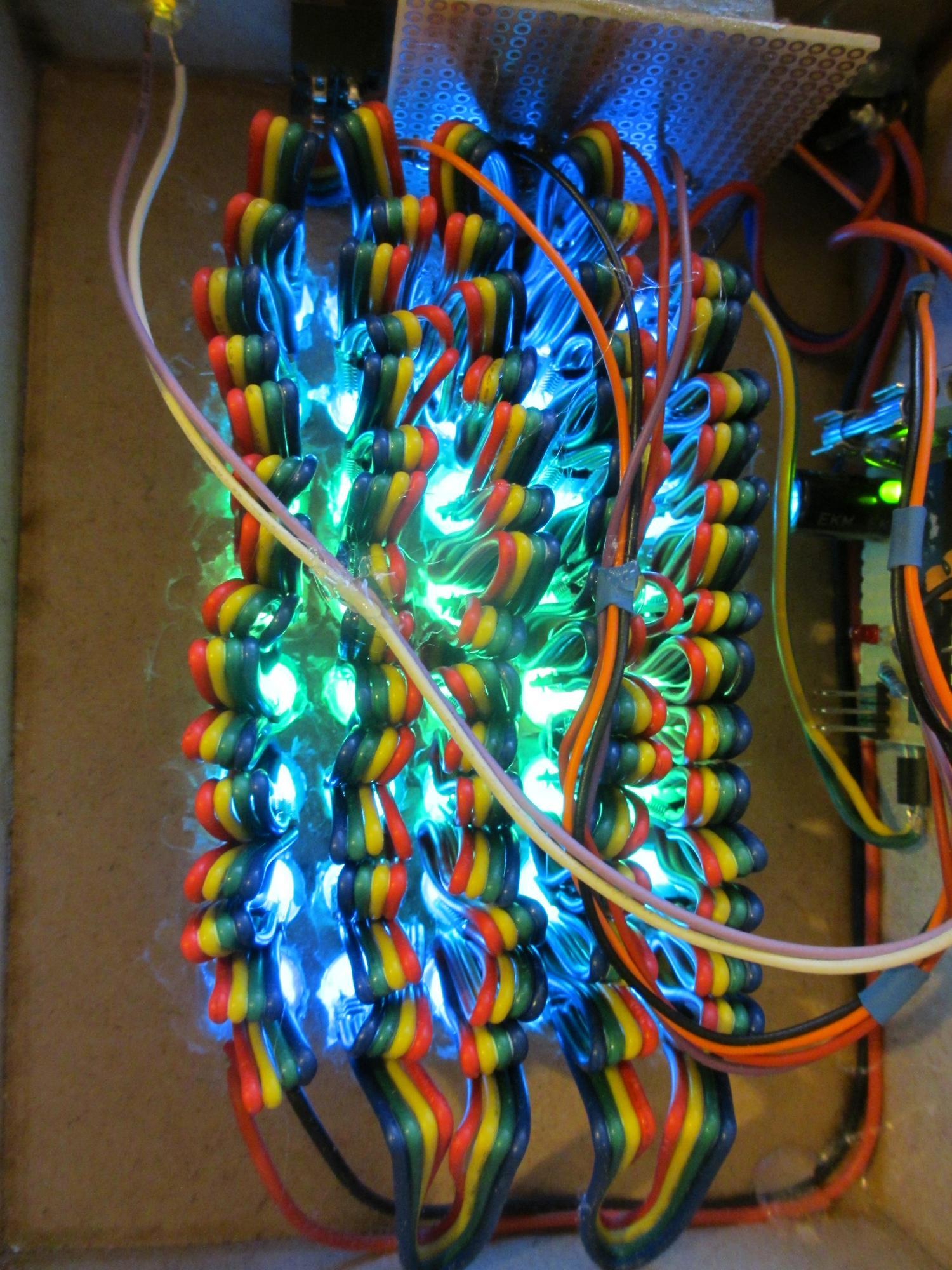

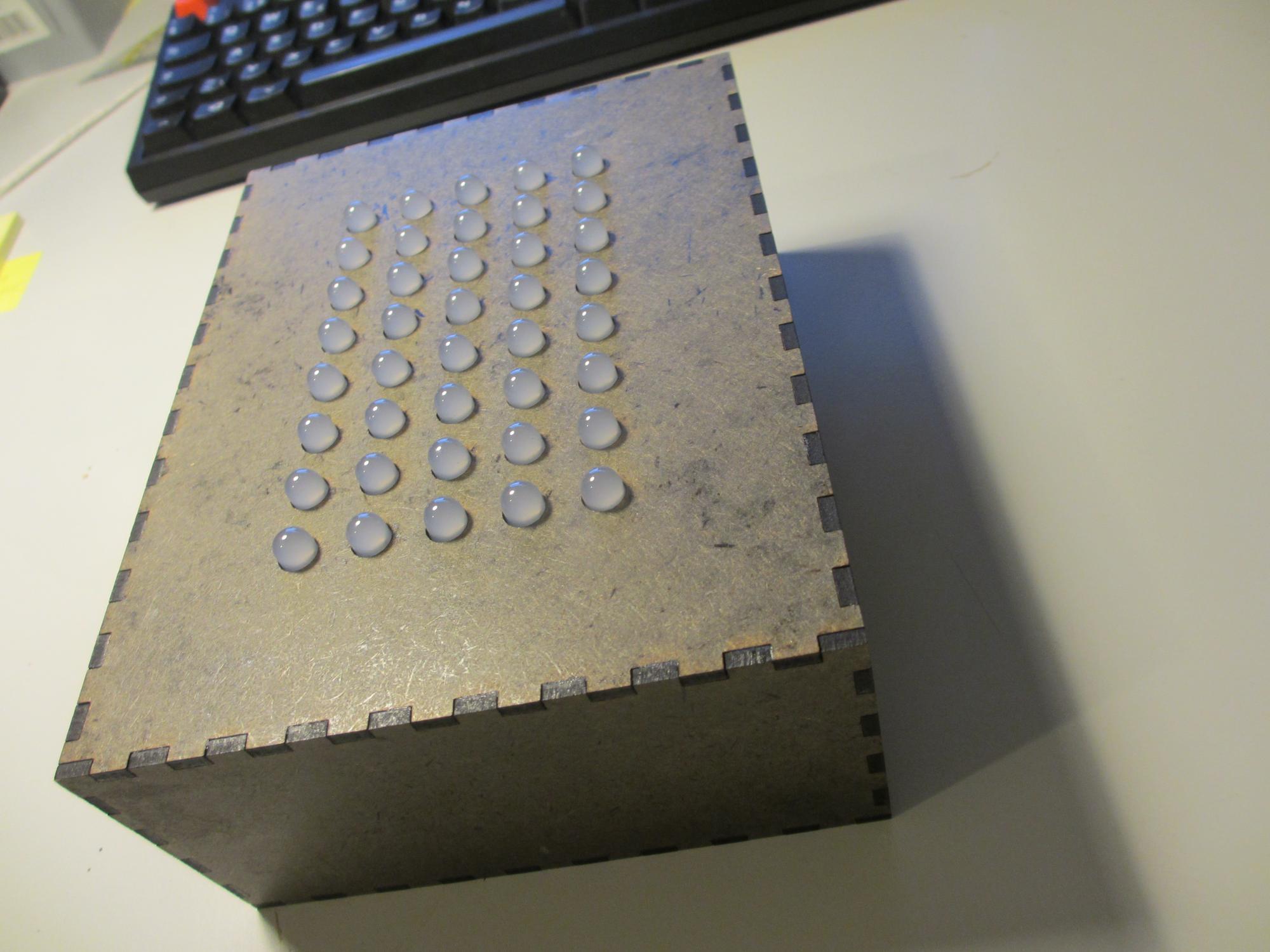

Controlled by ATmega328P (same as on some Arduino Uno). It uses the same software as the 7×7 matrix above. This is part of my Arduino Uno Stuff.

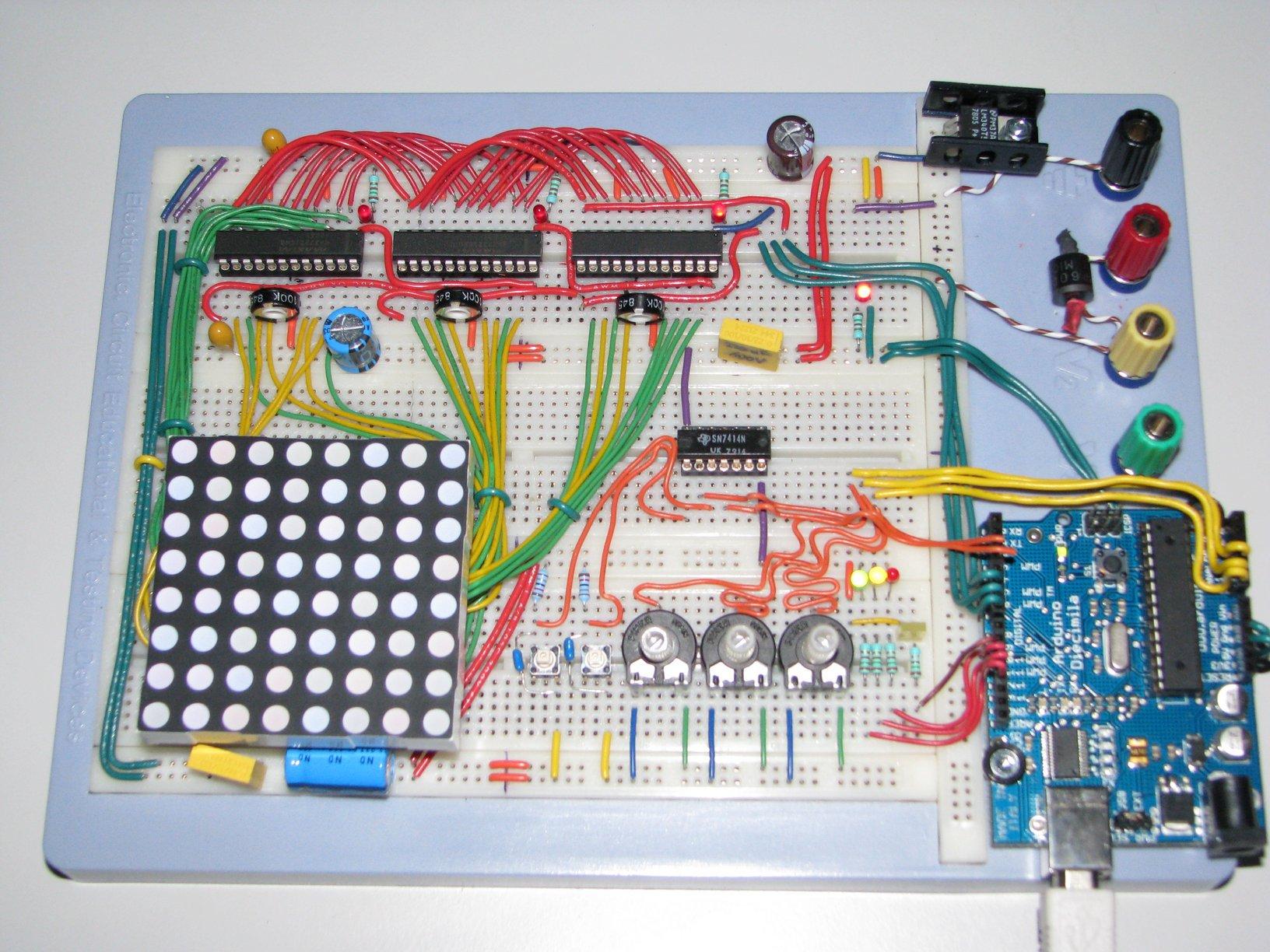

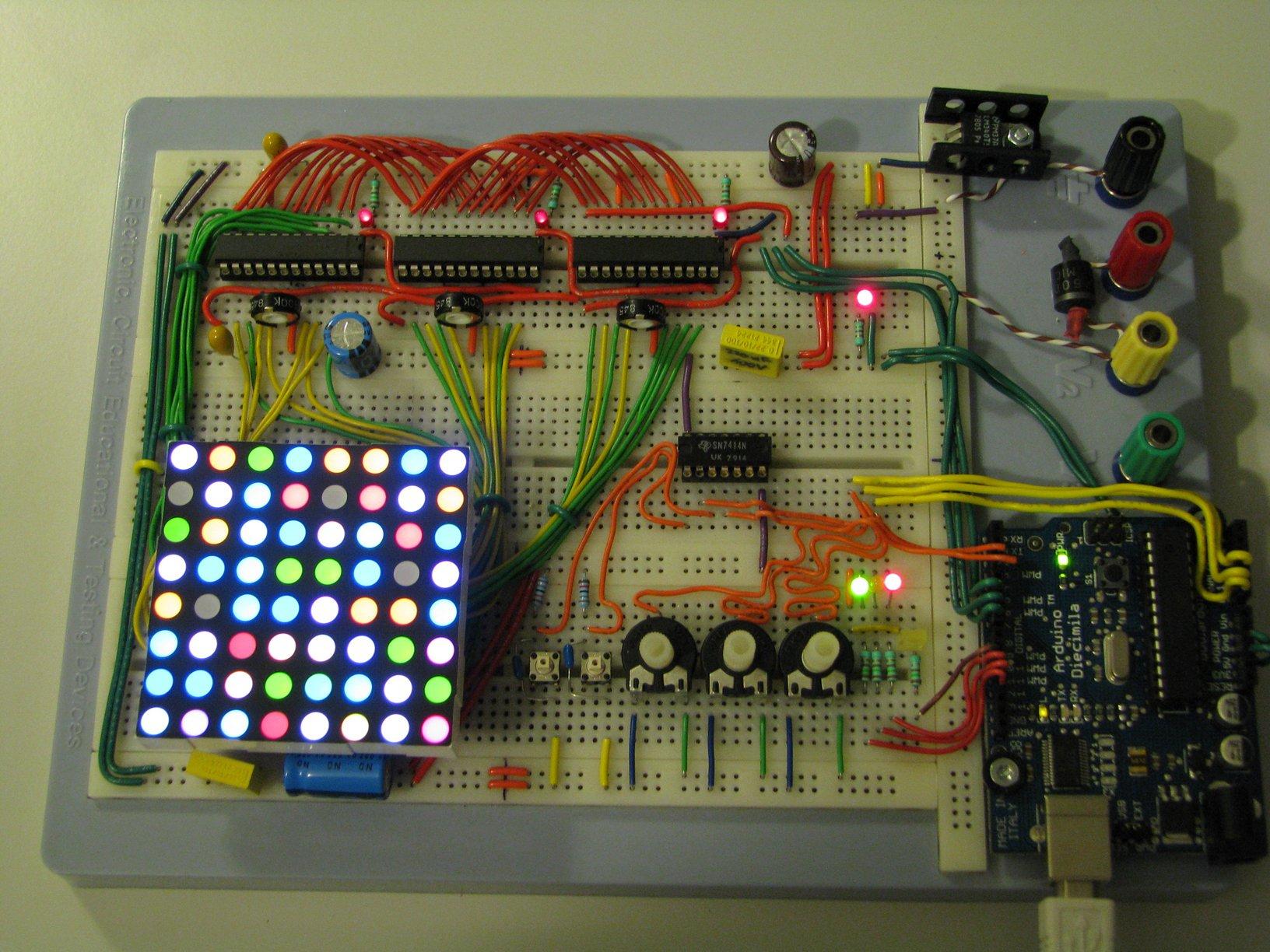

8×8 74HC595 Based RGB LED Matrix

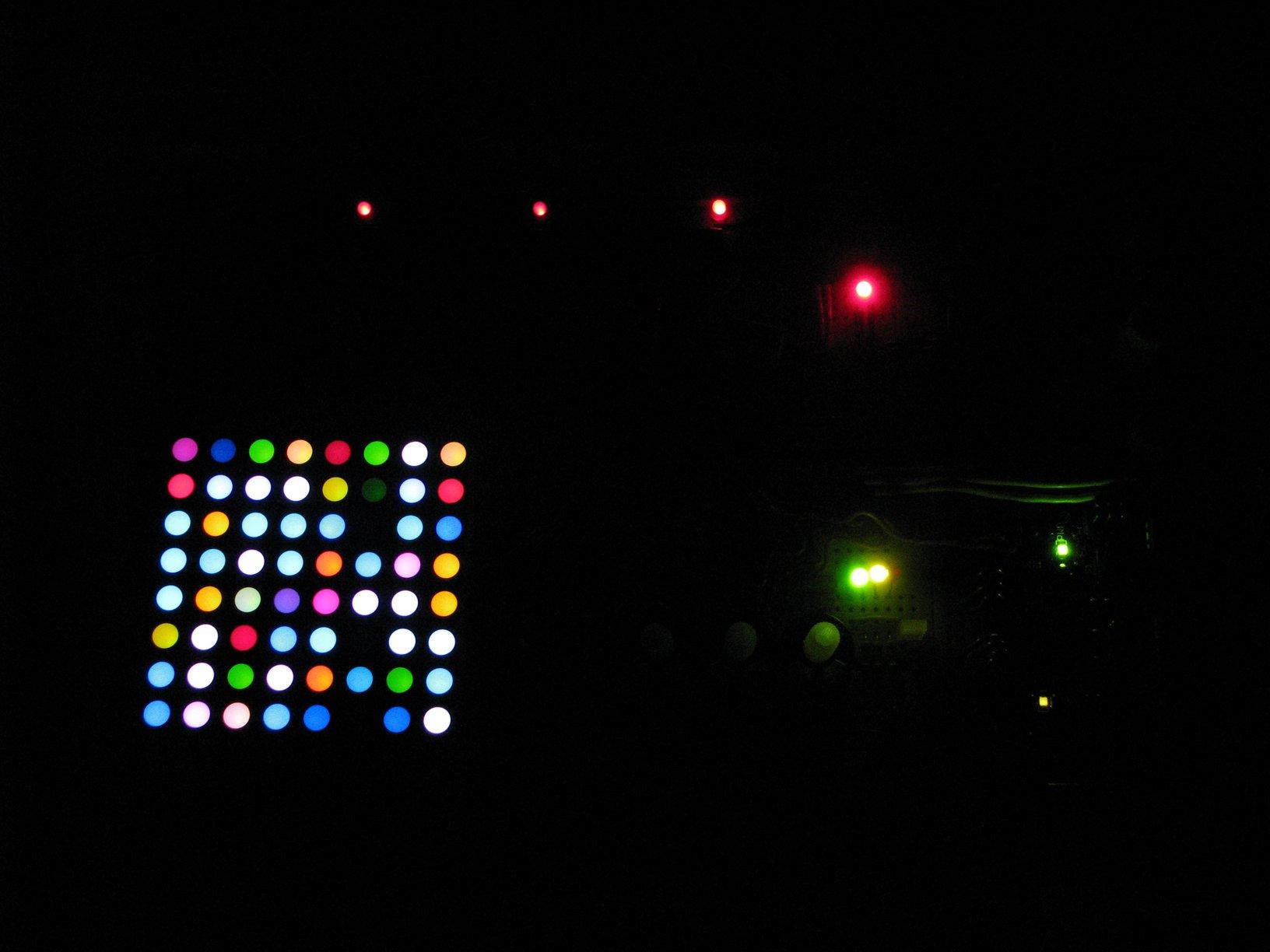

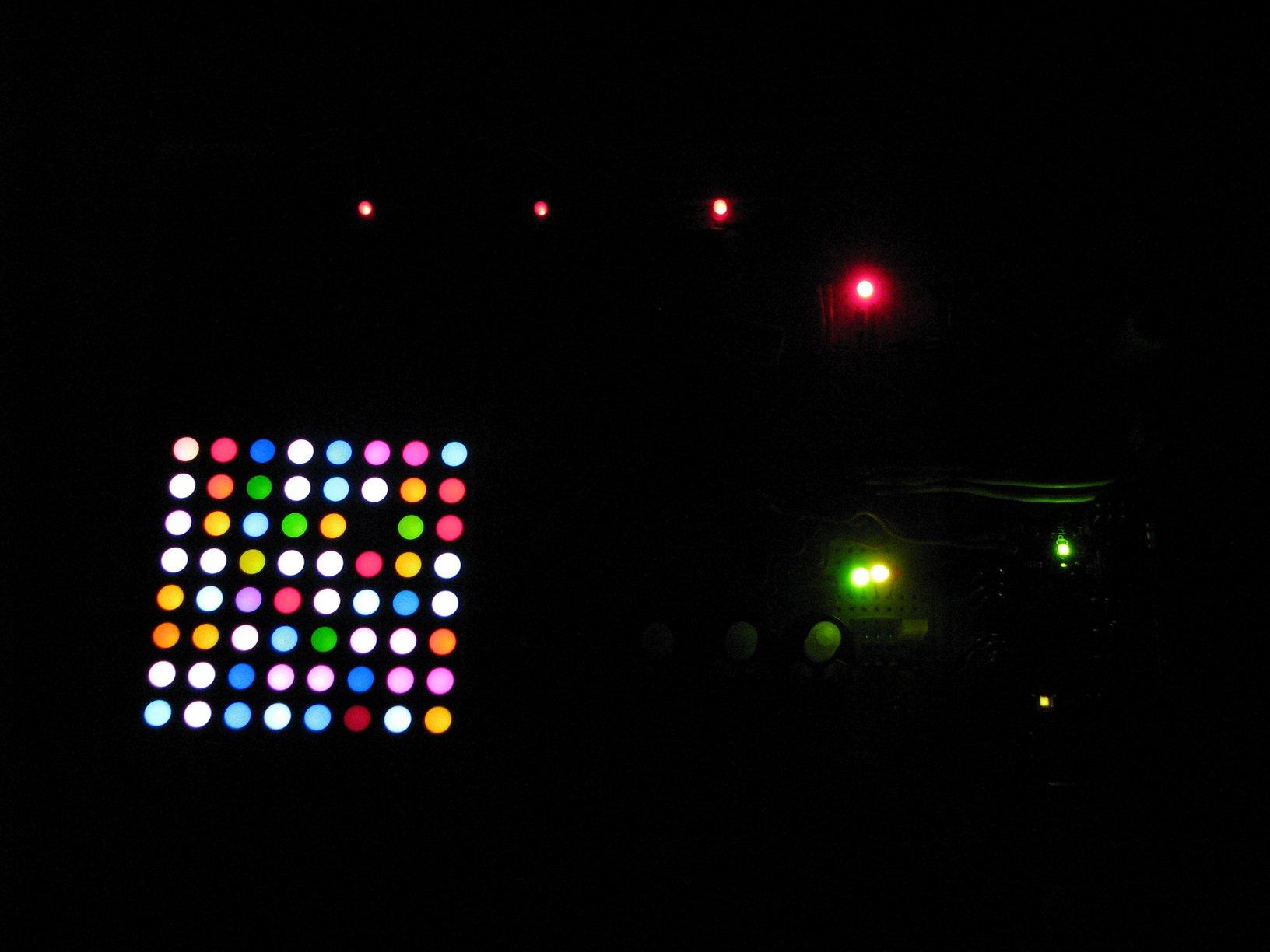

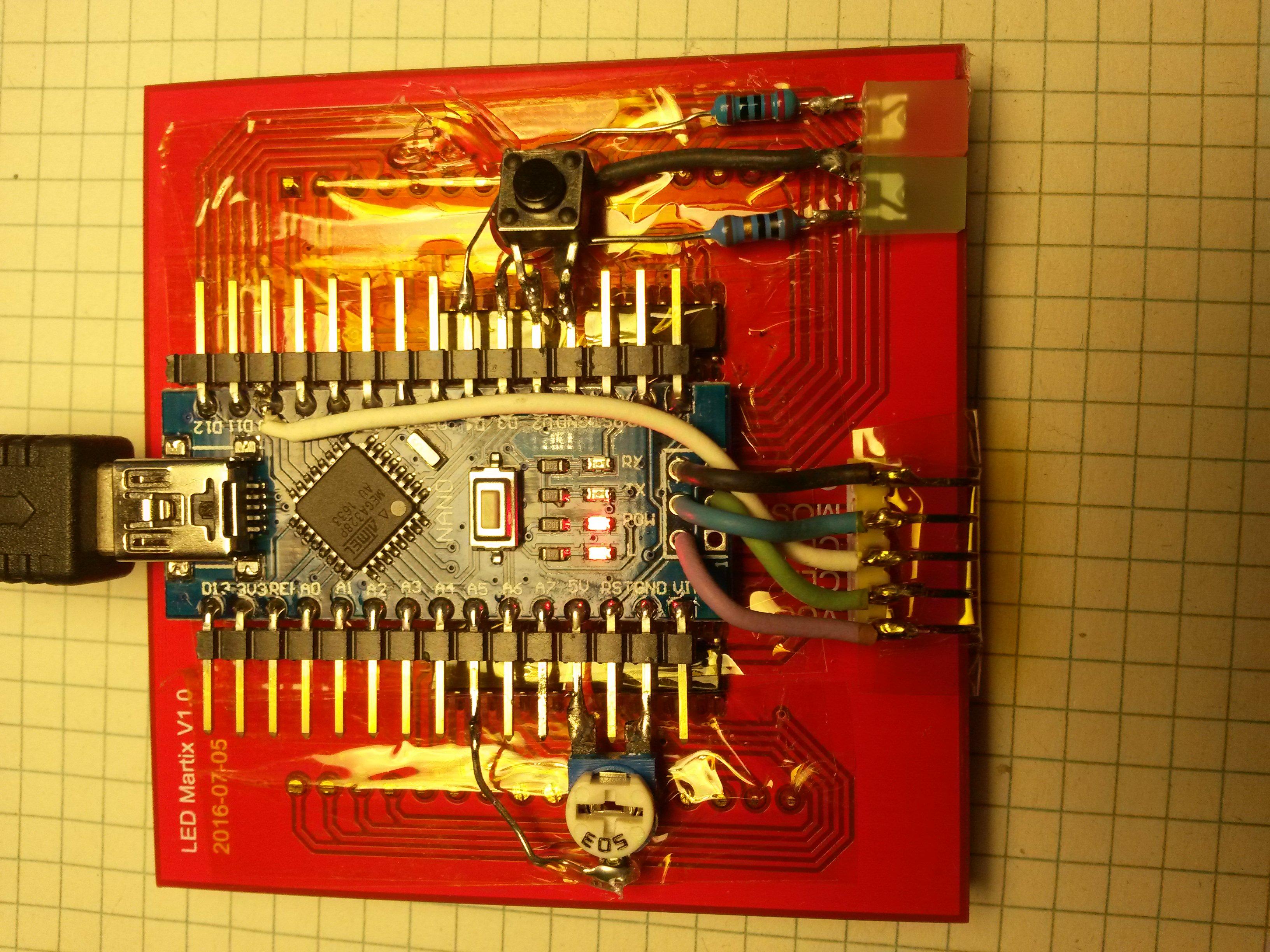

Controlled by ATmega328P (an Arduino Nano clone) using code that duty-cycles the colours and rows to simulate four different brightness levels. This is part of my Arduino Uno Stuff.

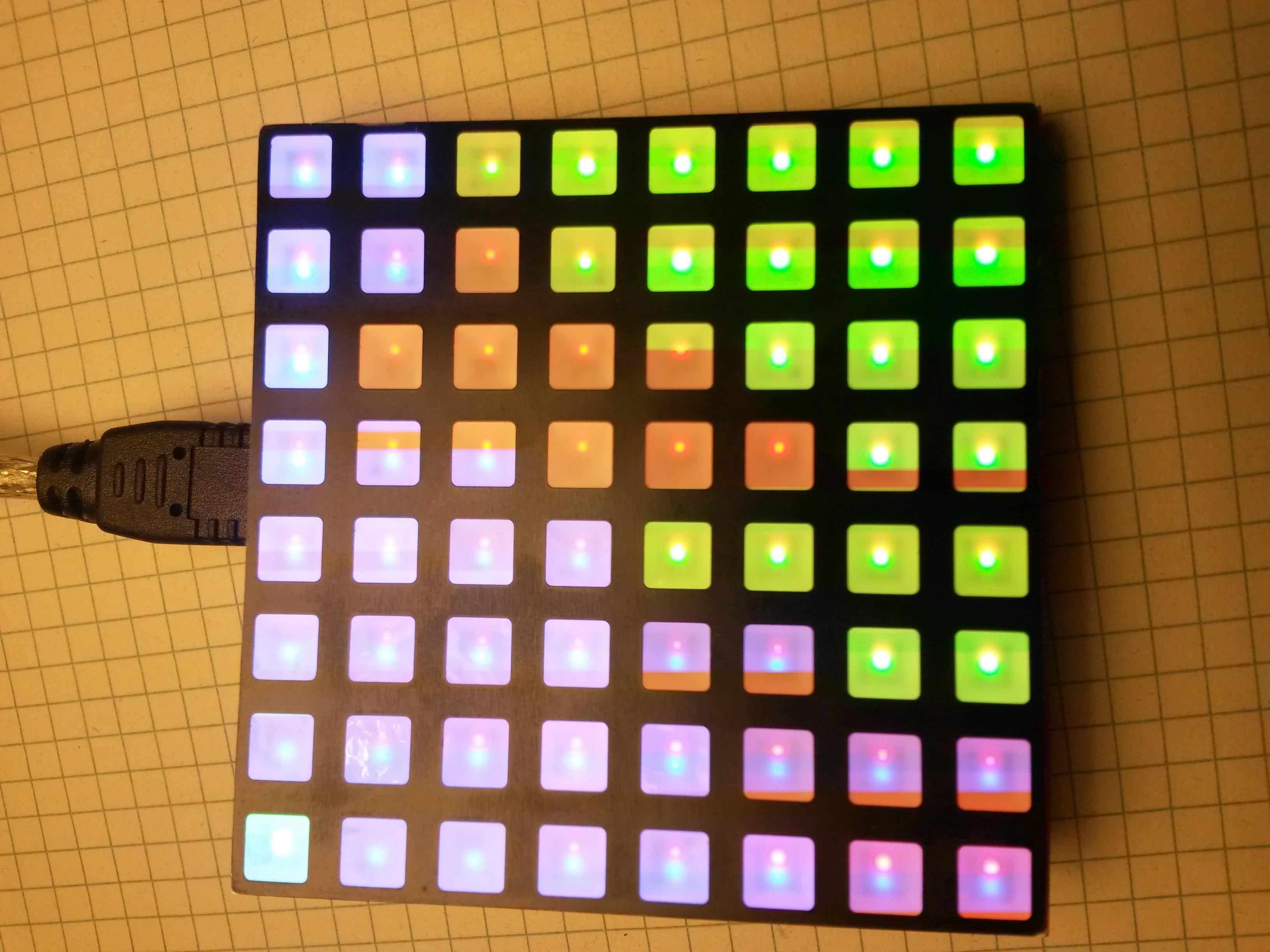

(Tue 23.05.2017 23:05:27, GT-I9195, f/2, 3mm, 1/71s, iso 50)
(Tue 23.05.2017 23:05:35, GT-I9195, f/2, 3mm, 1/145s, iso 50)

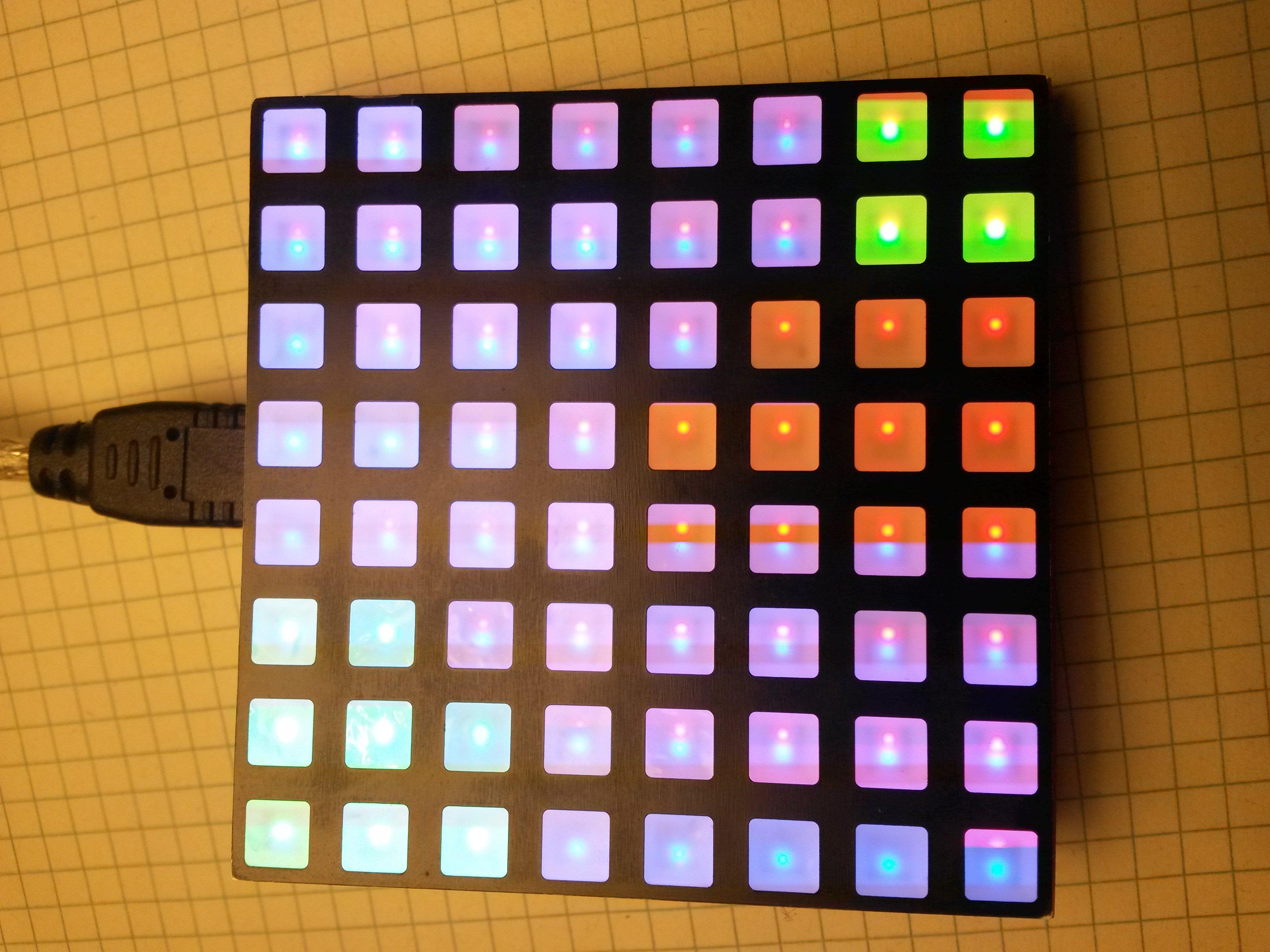

(Tue 23.05.2017 23:05:40, GT-I9195, f/2, 3mm, 1/145s, iso 50)

Watch the video on Youtube.

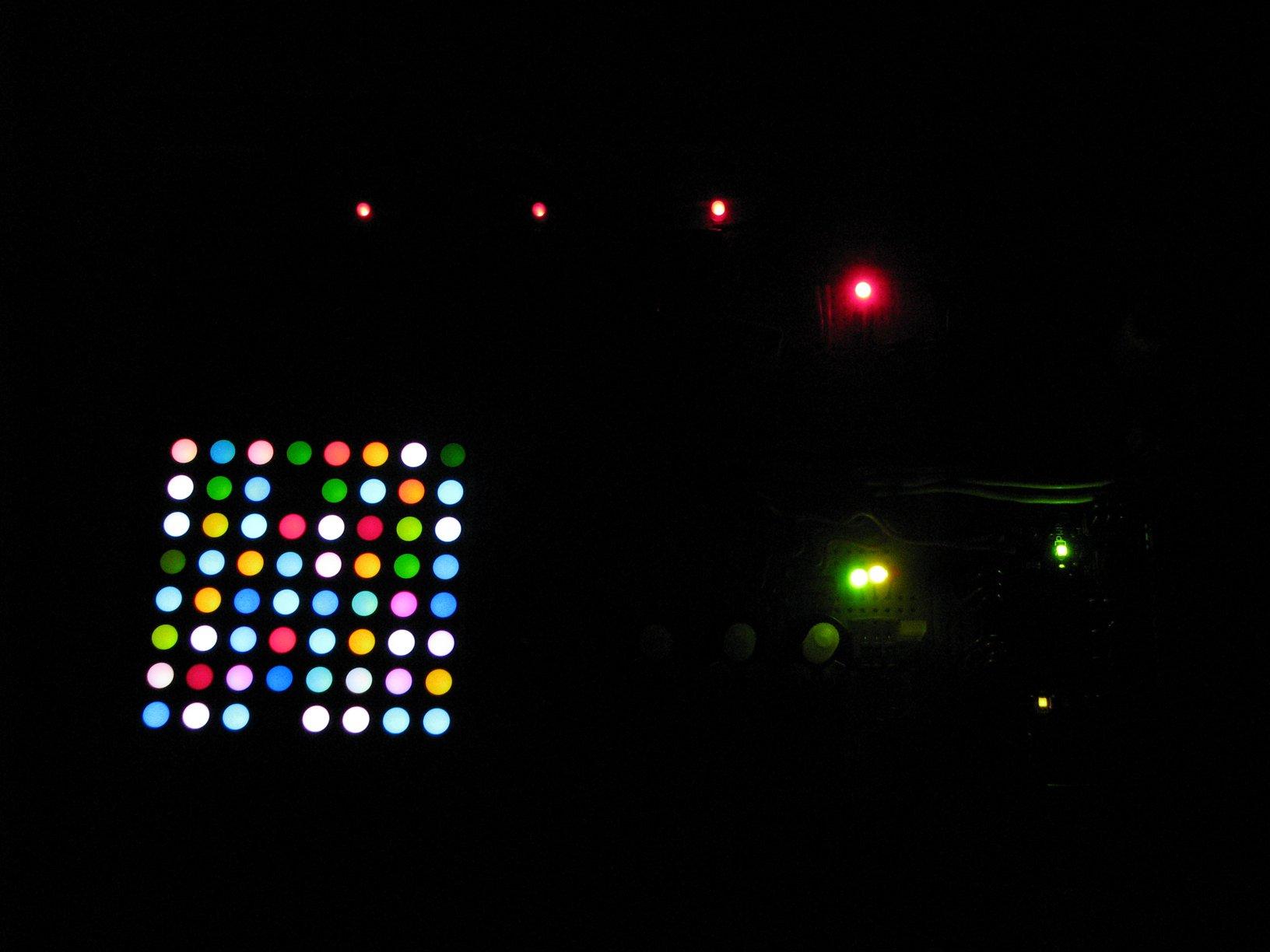

Old 8×8 Matrix

Early work.

Watch the video on Youtube.
