Wintec GPS Logger Upgrade

Wintec WSG-1000 / Navilock NL-120GR GPS Logger upgrade to u-blox NEO-M8N

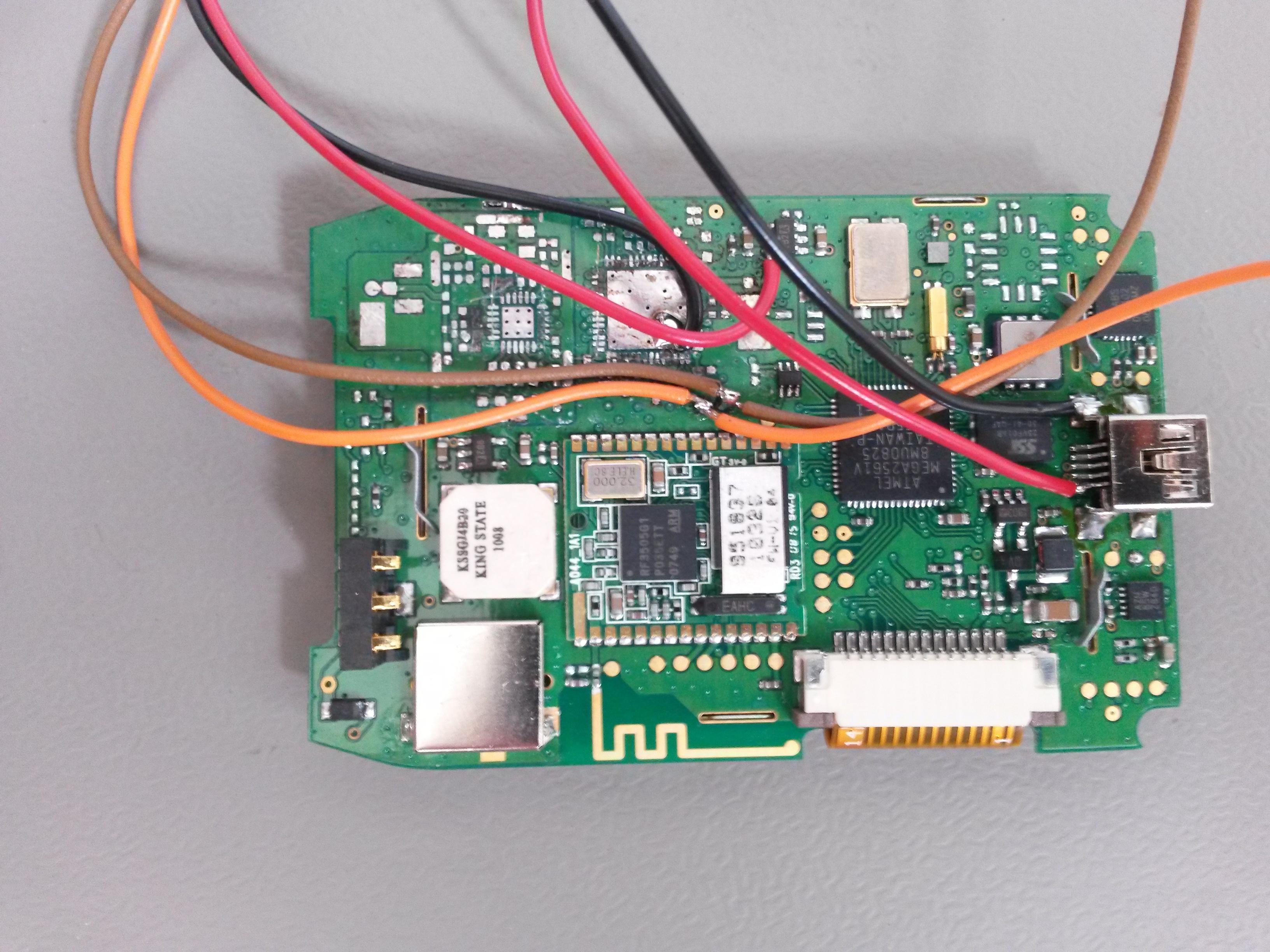

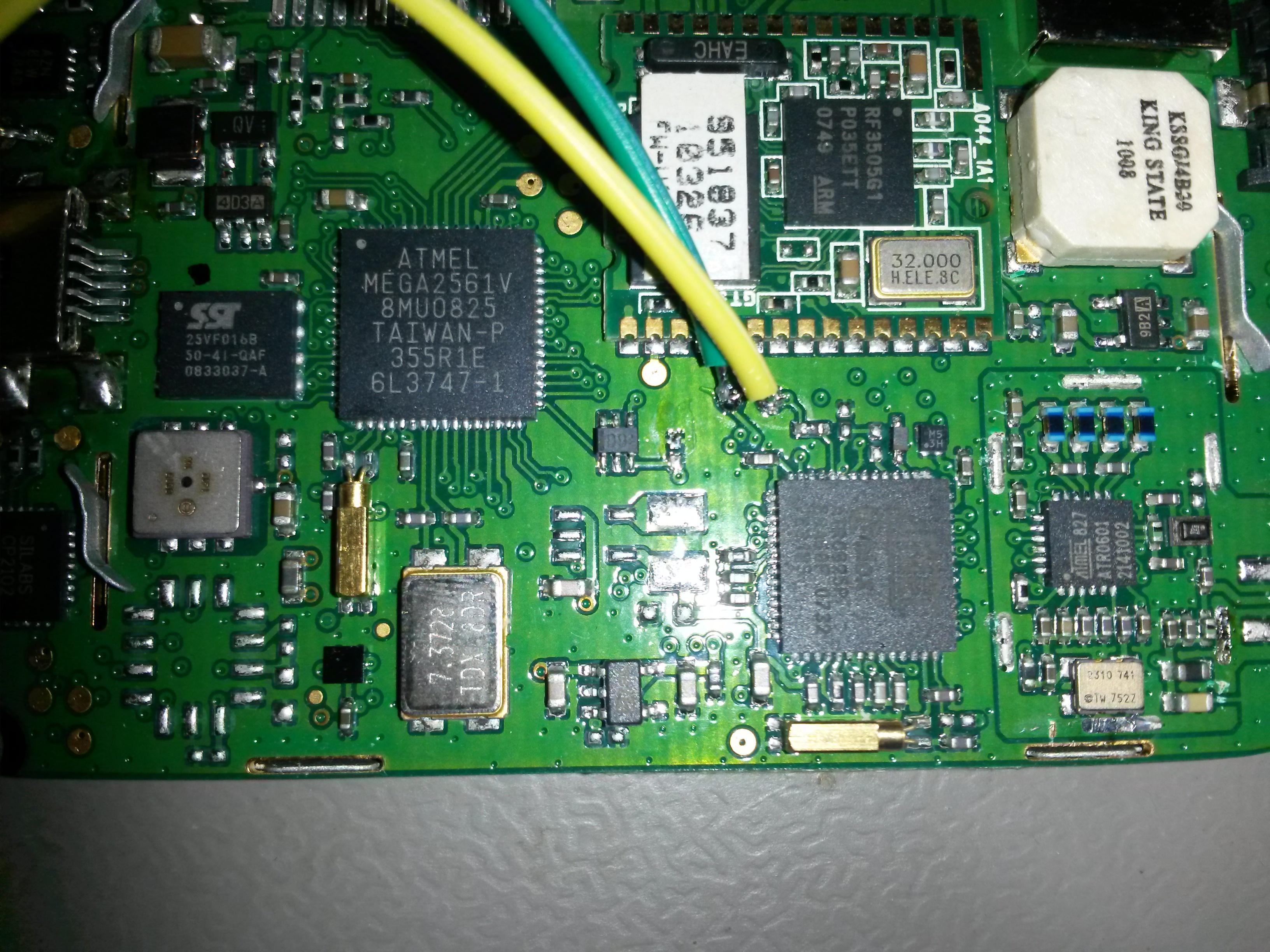

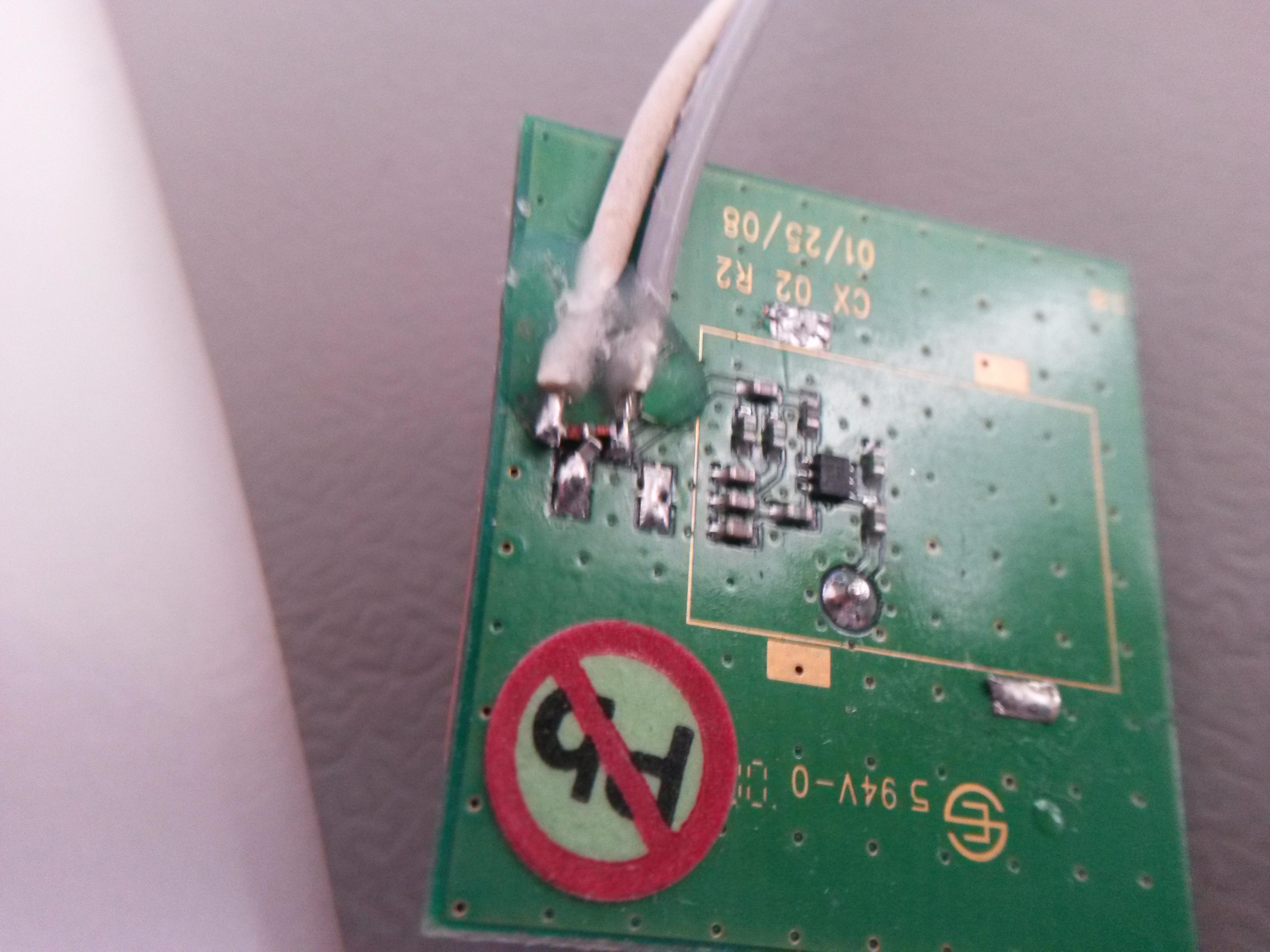

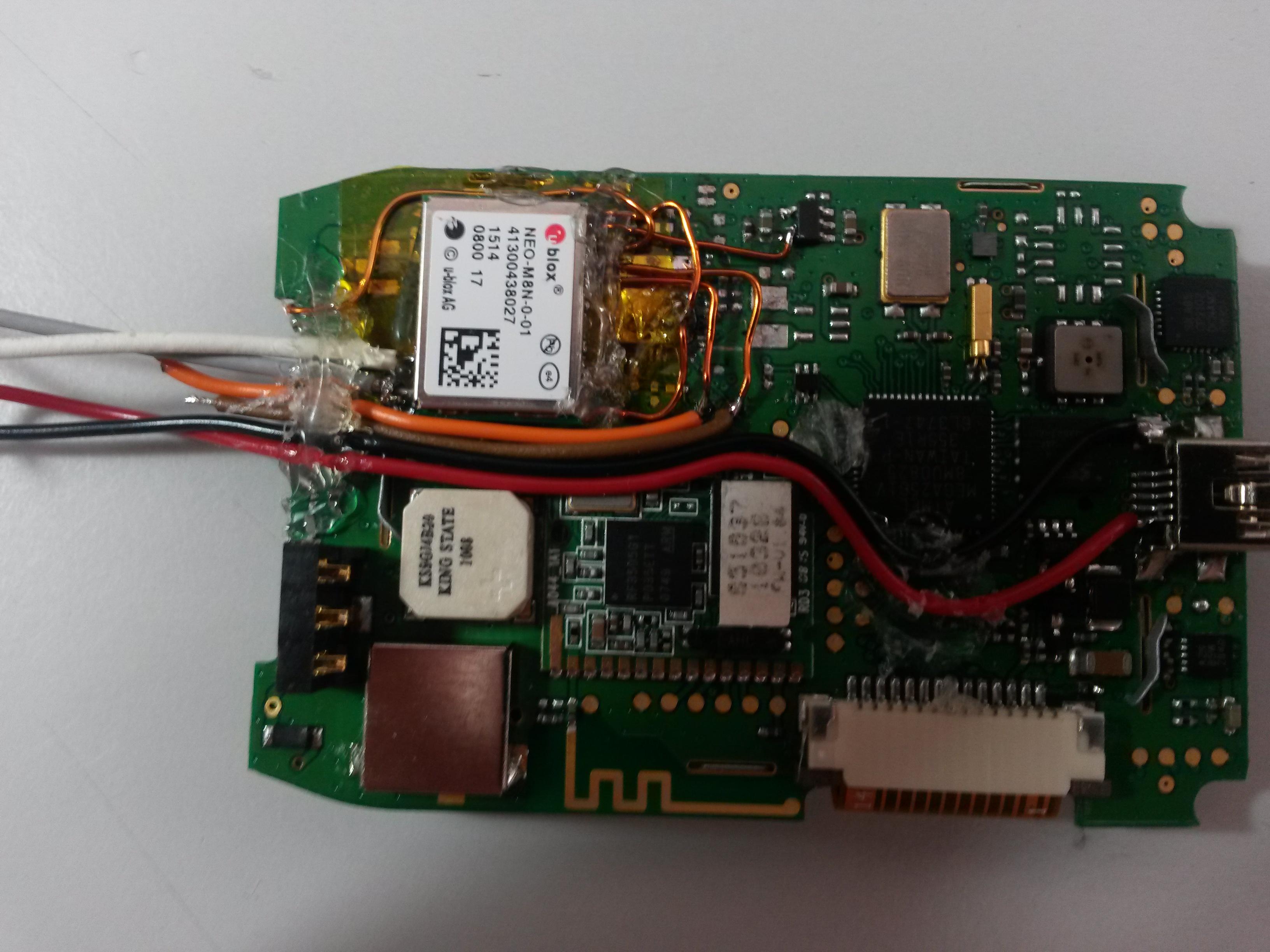

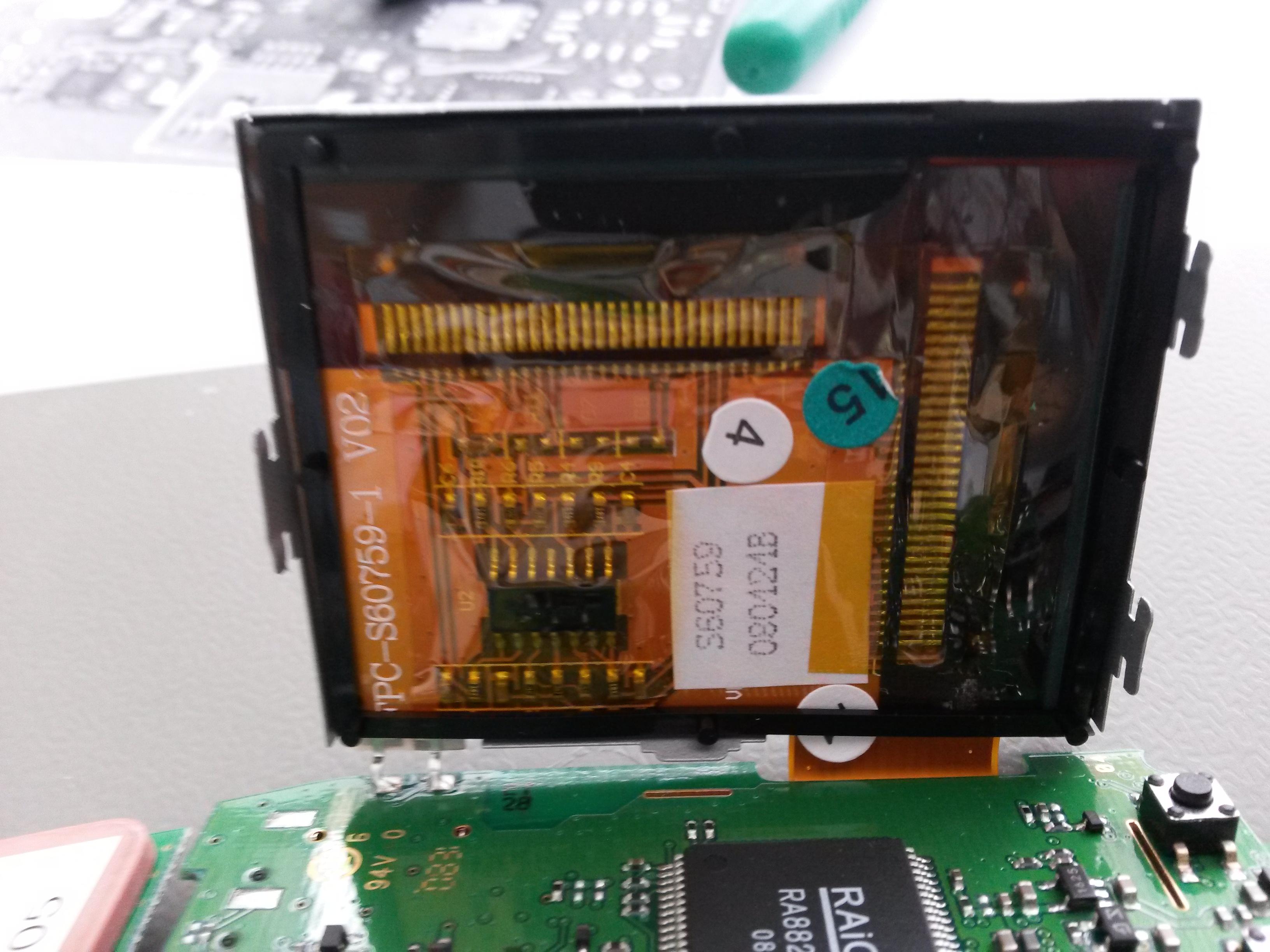

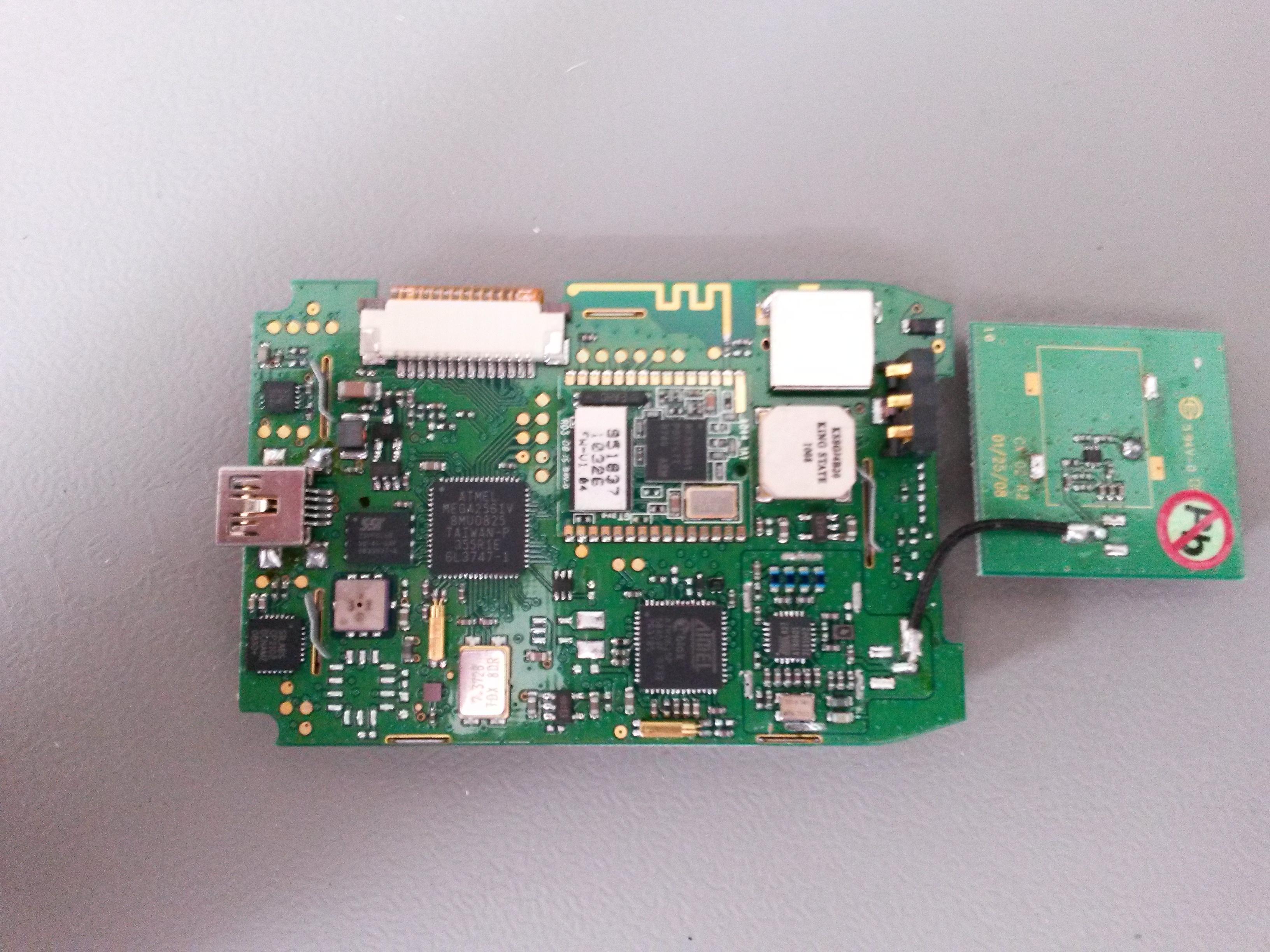

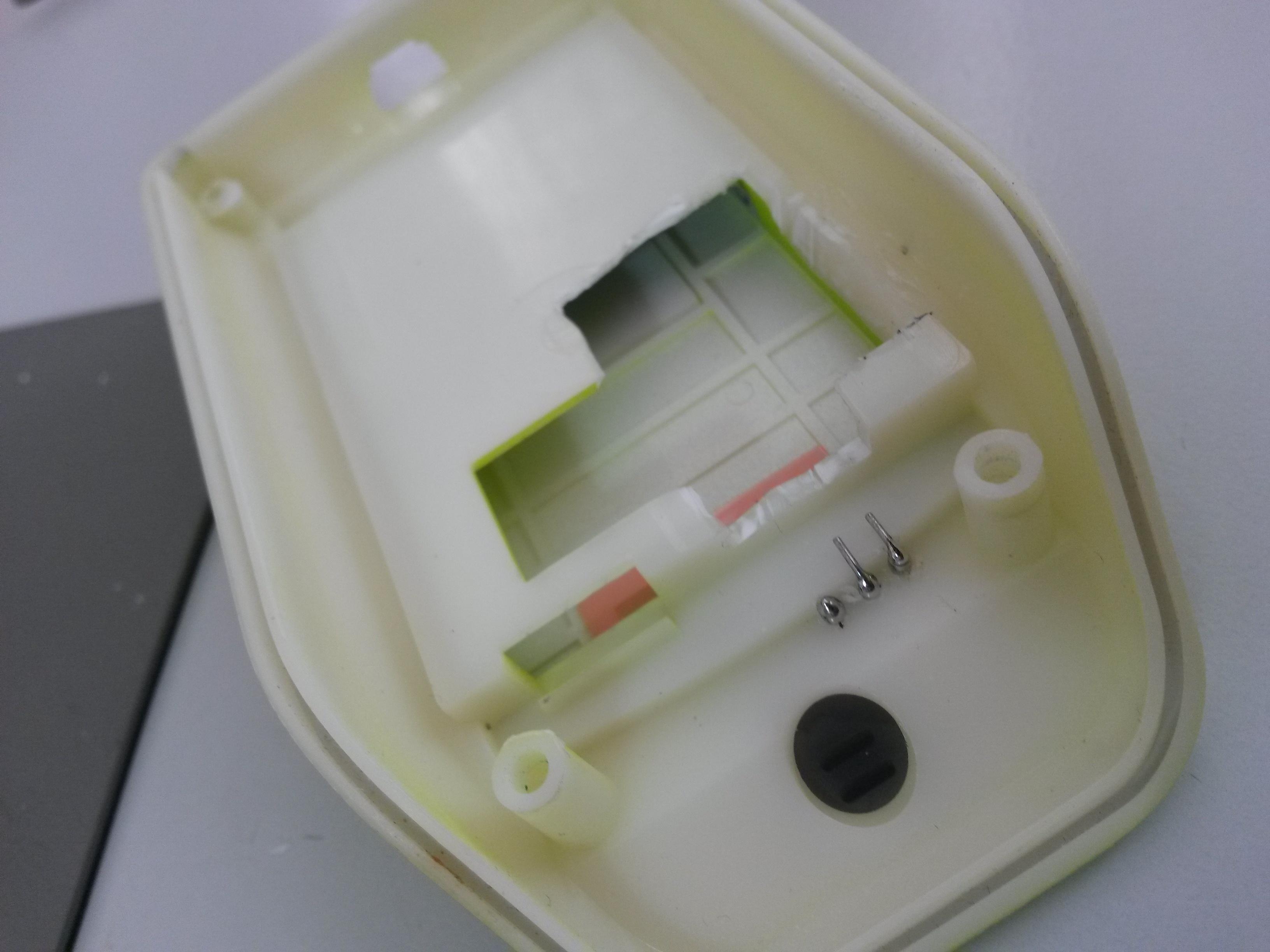

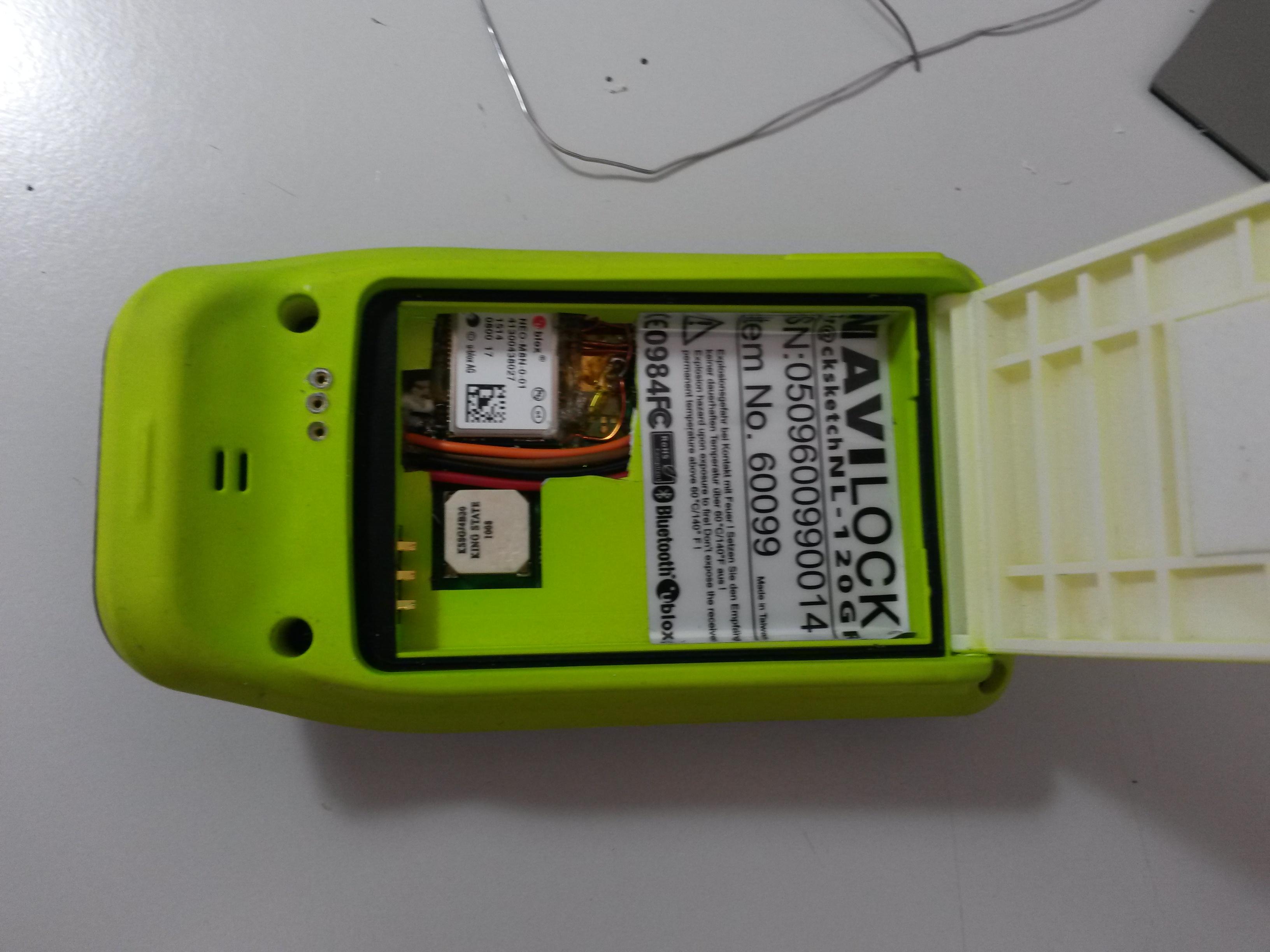

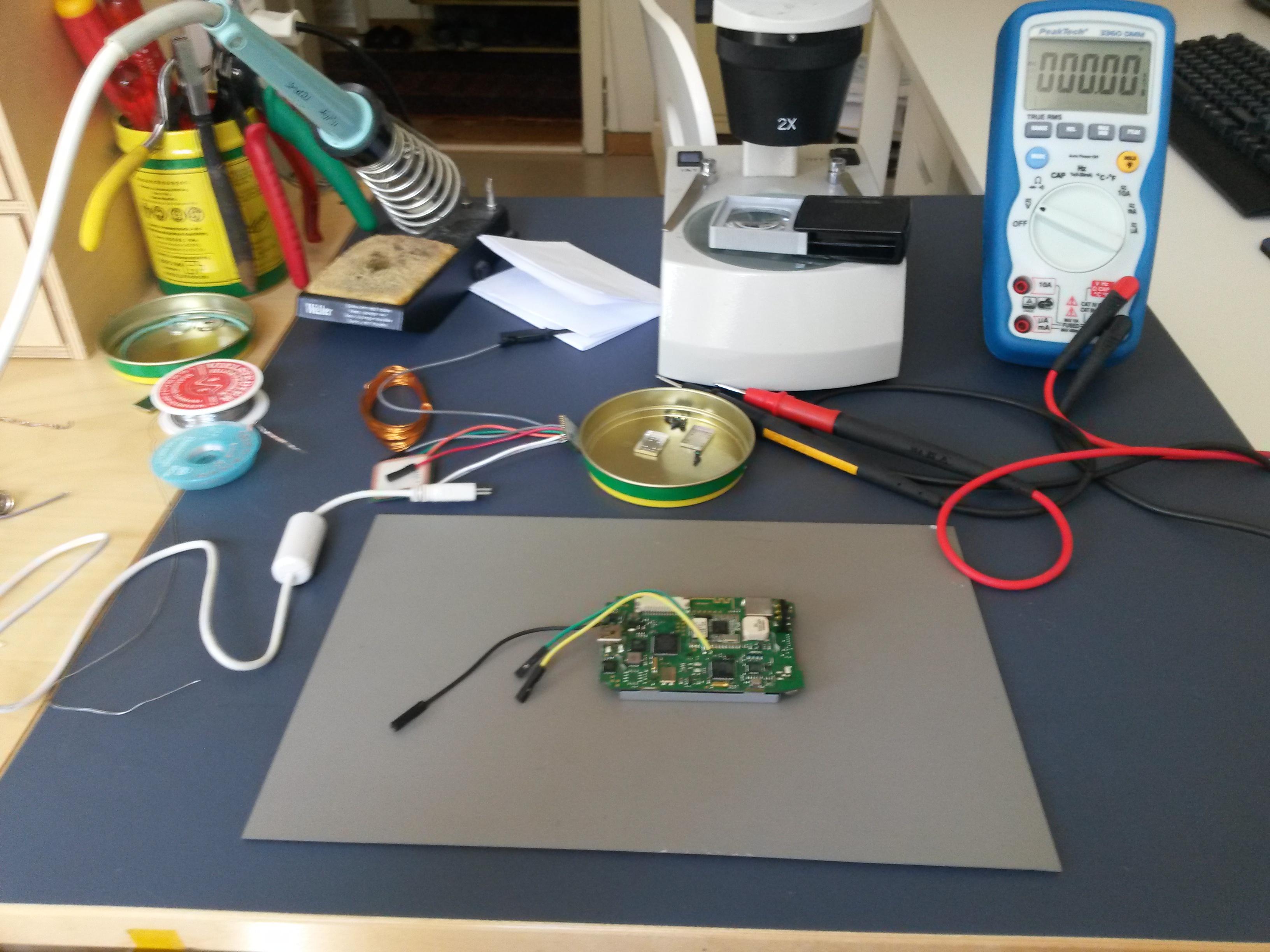

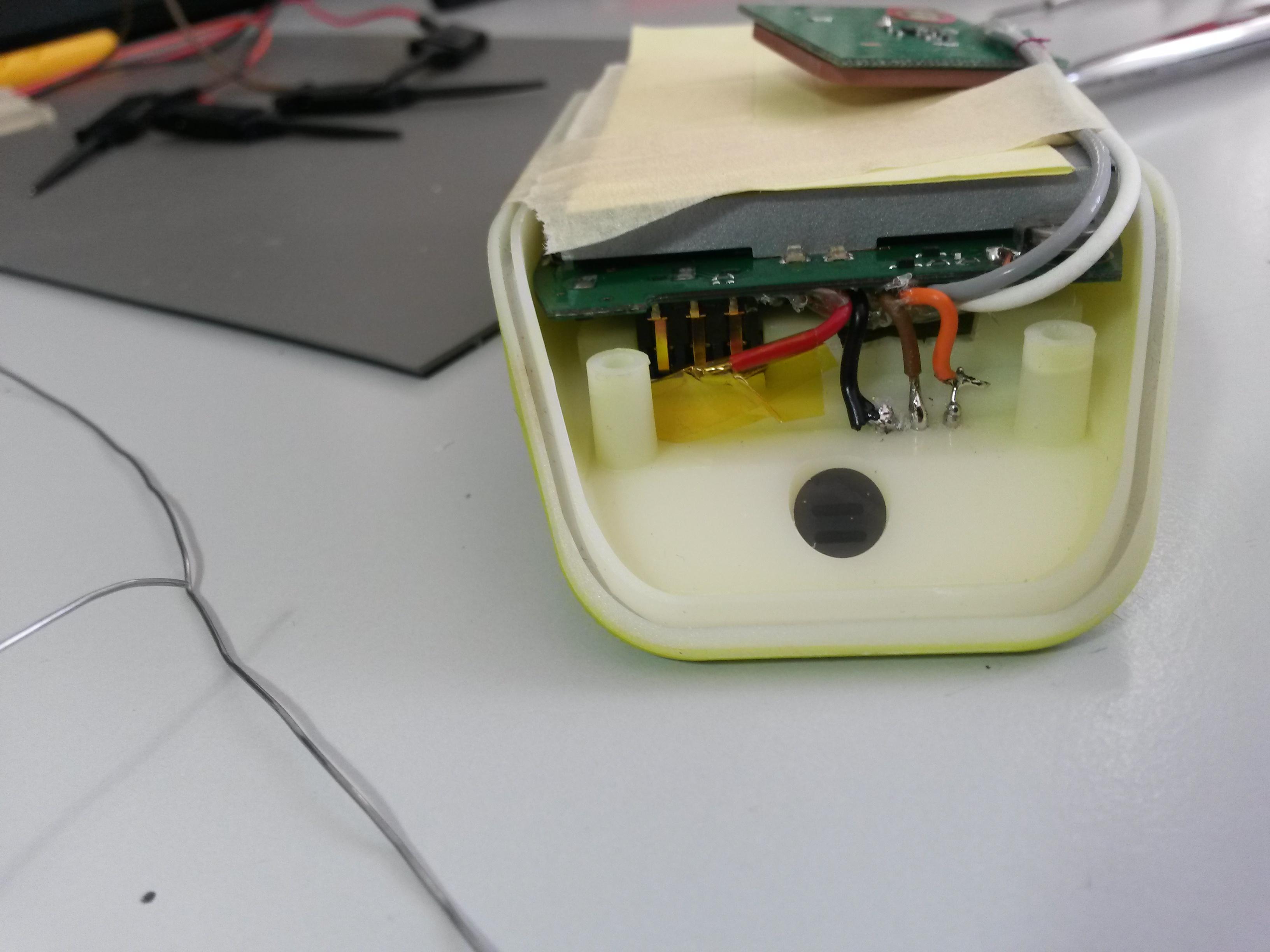

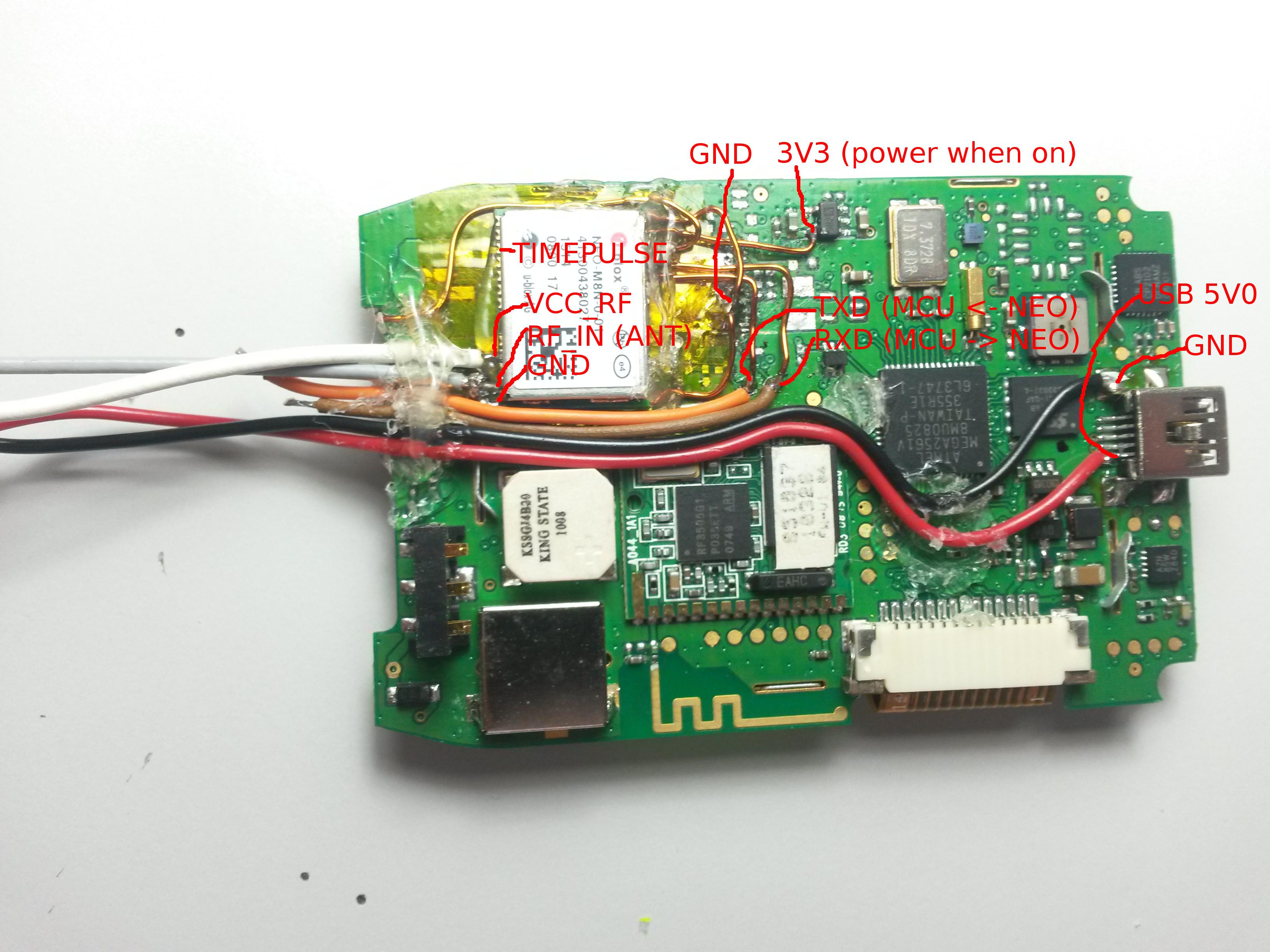

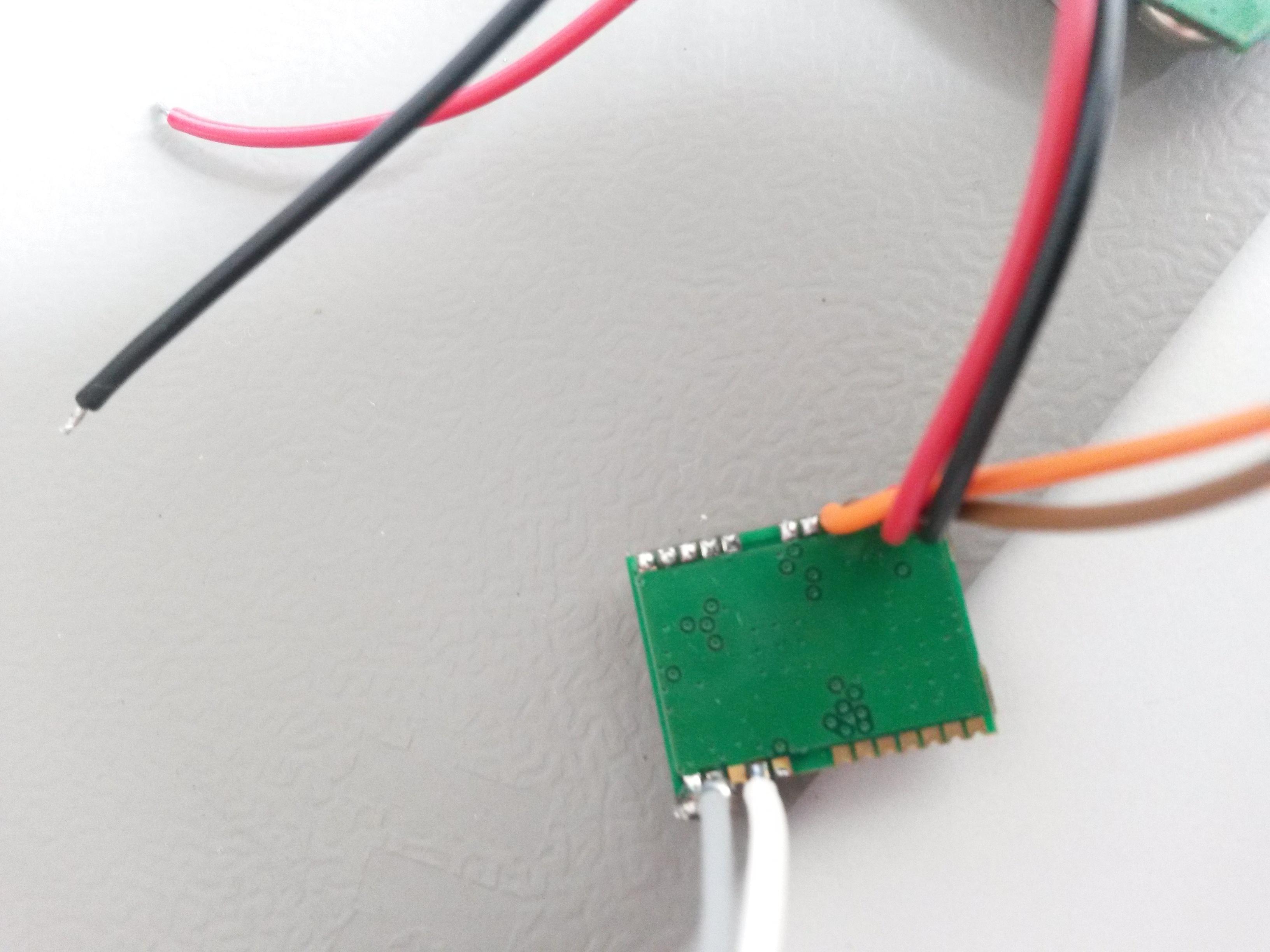

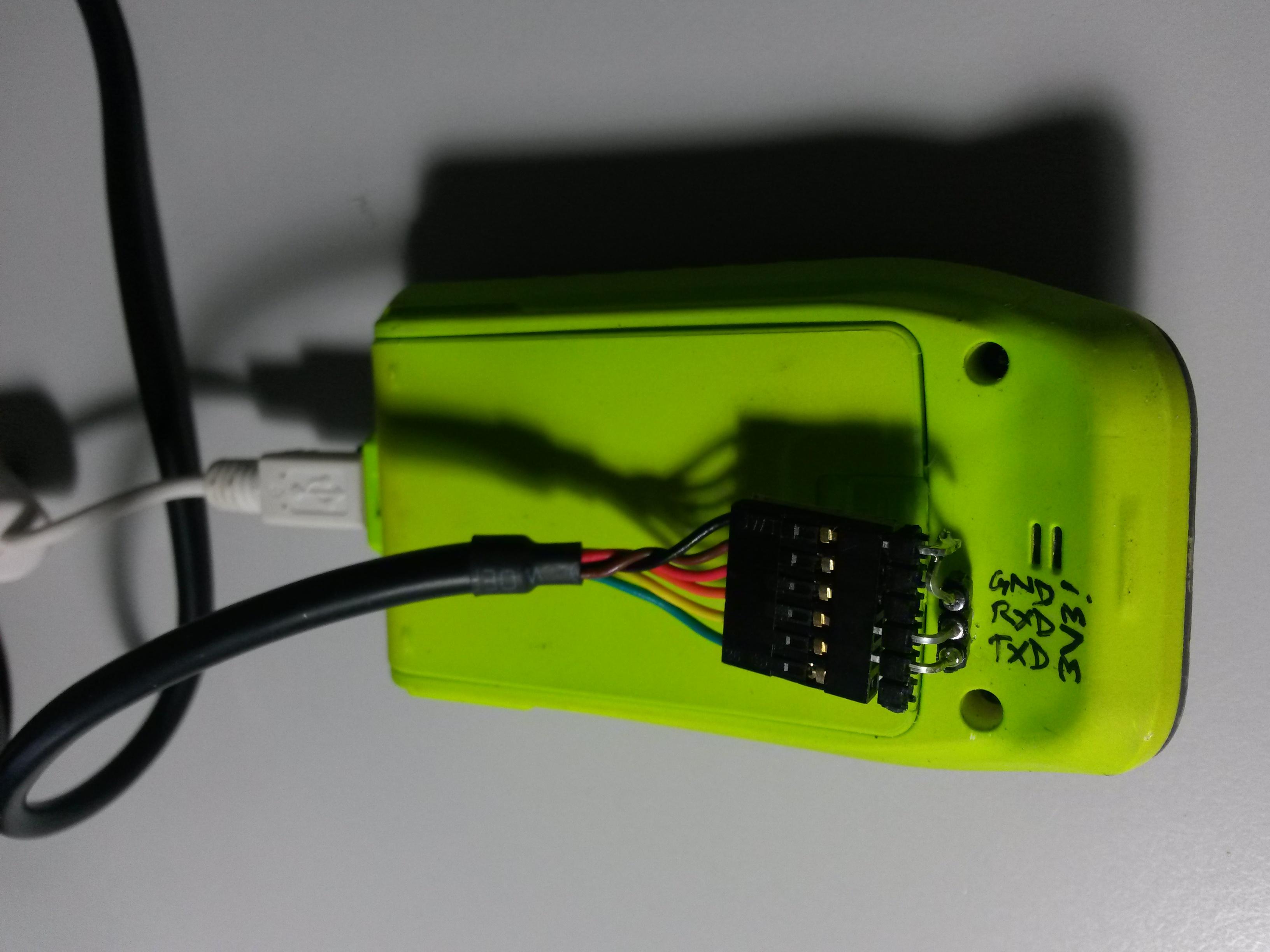

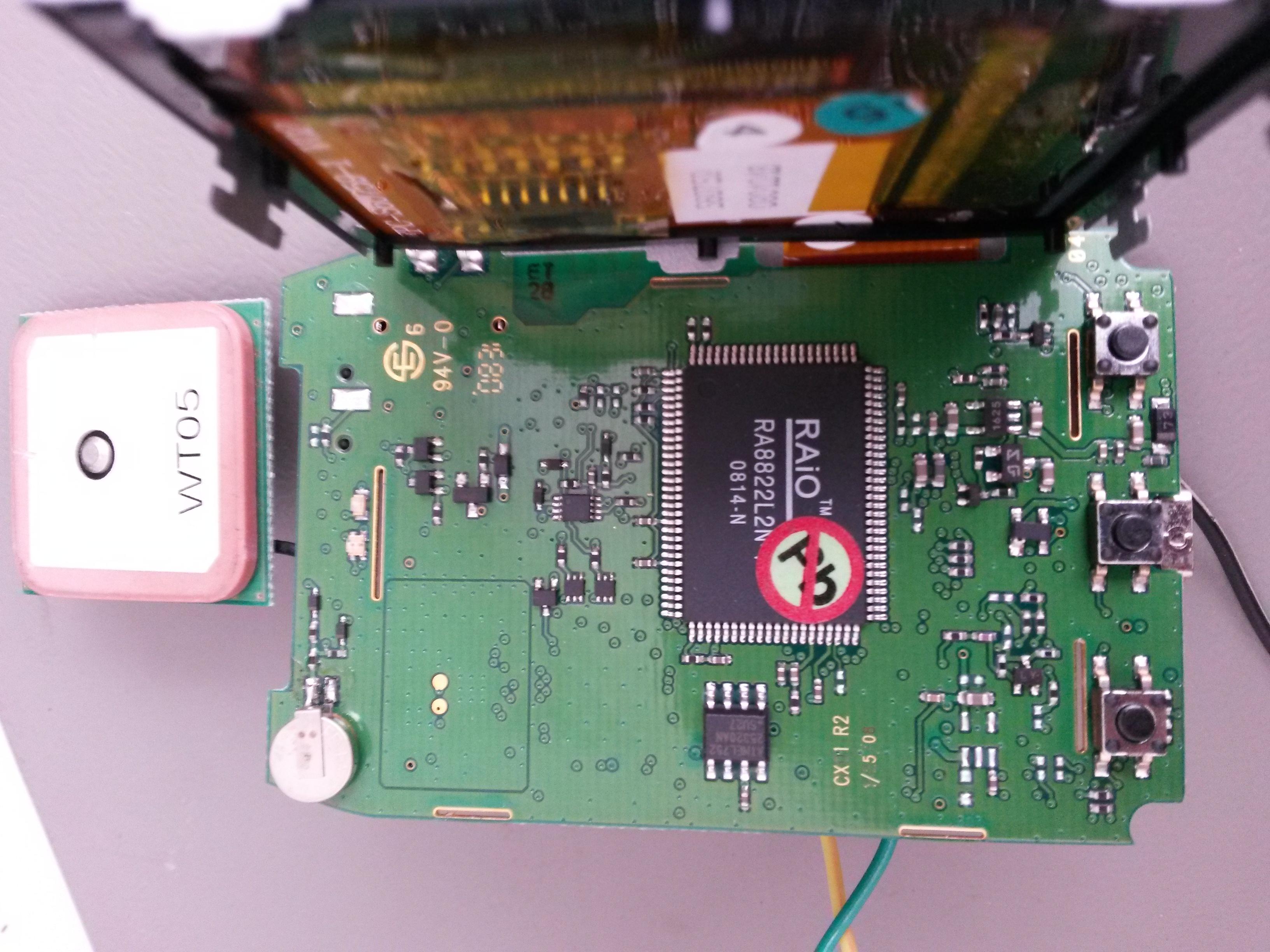

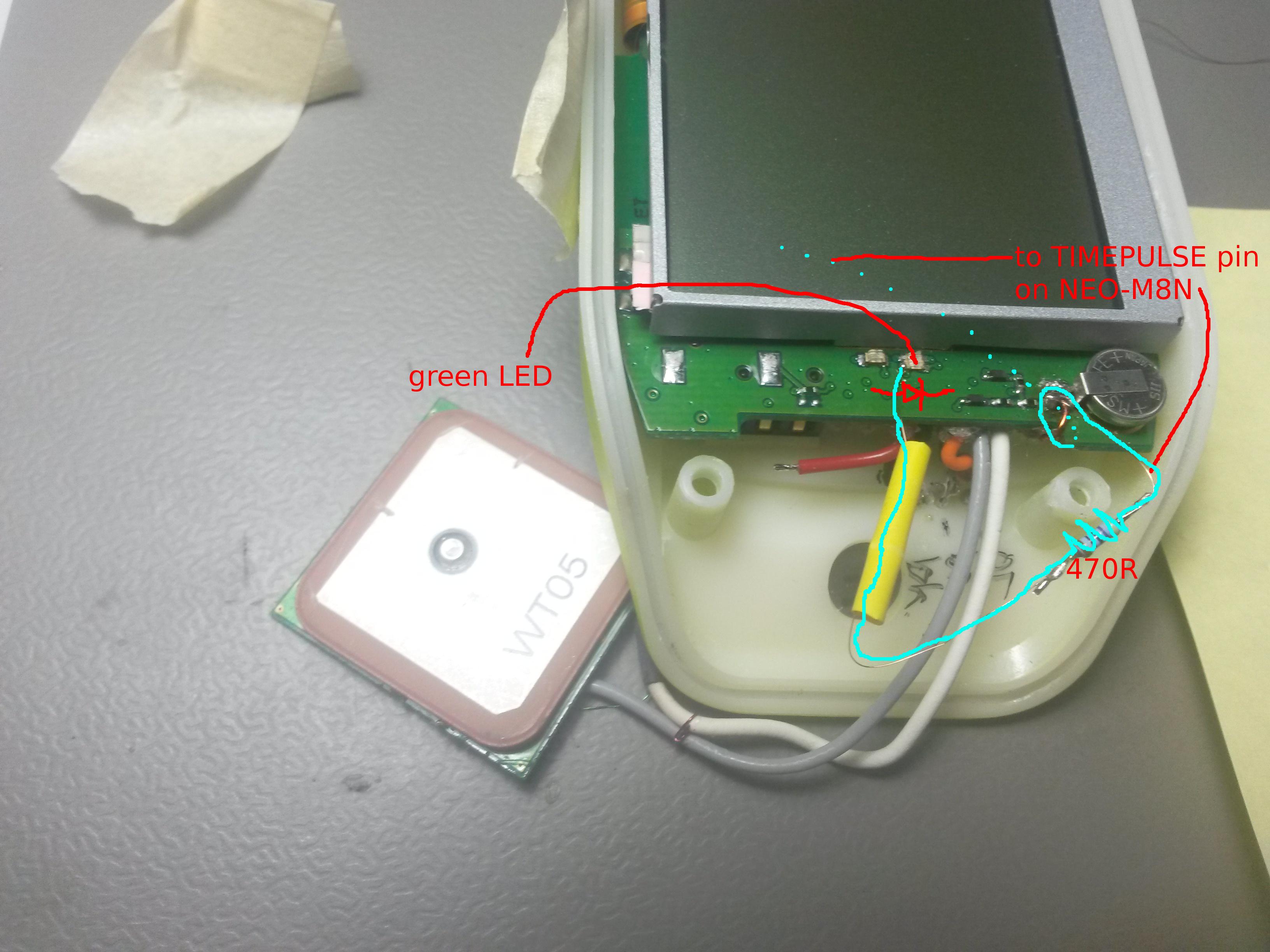

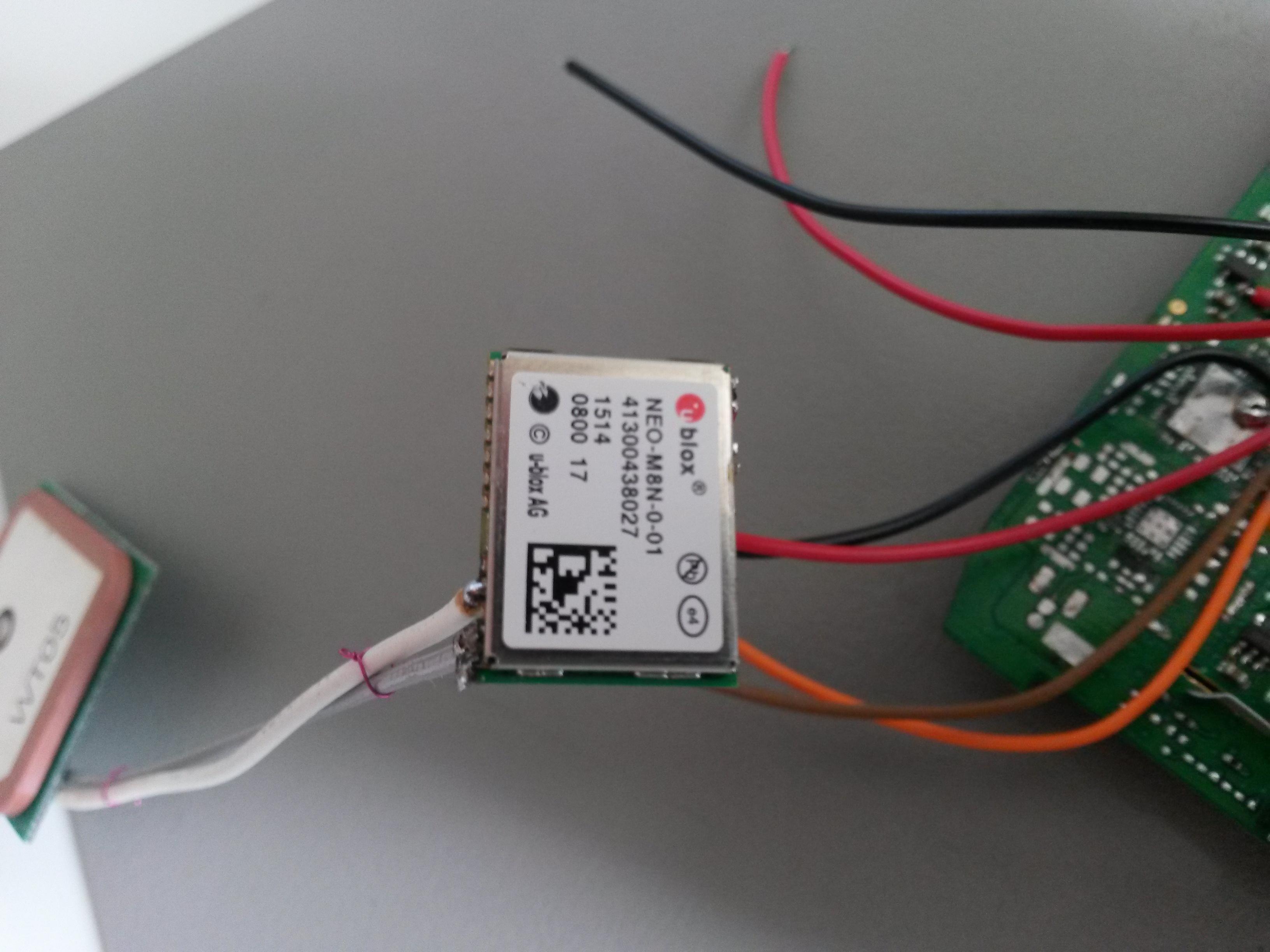

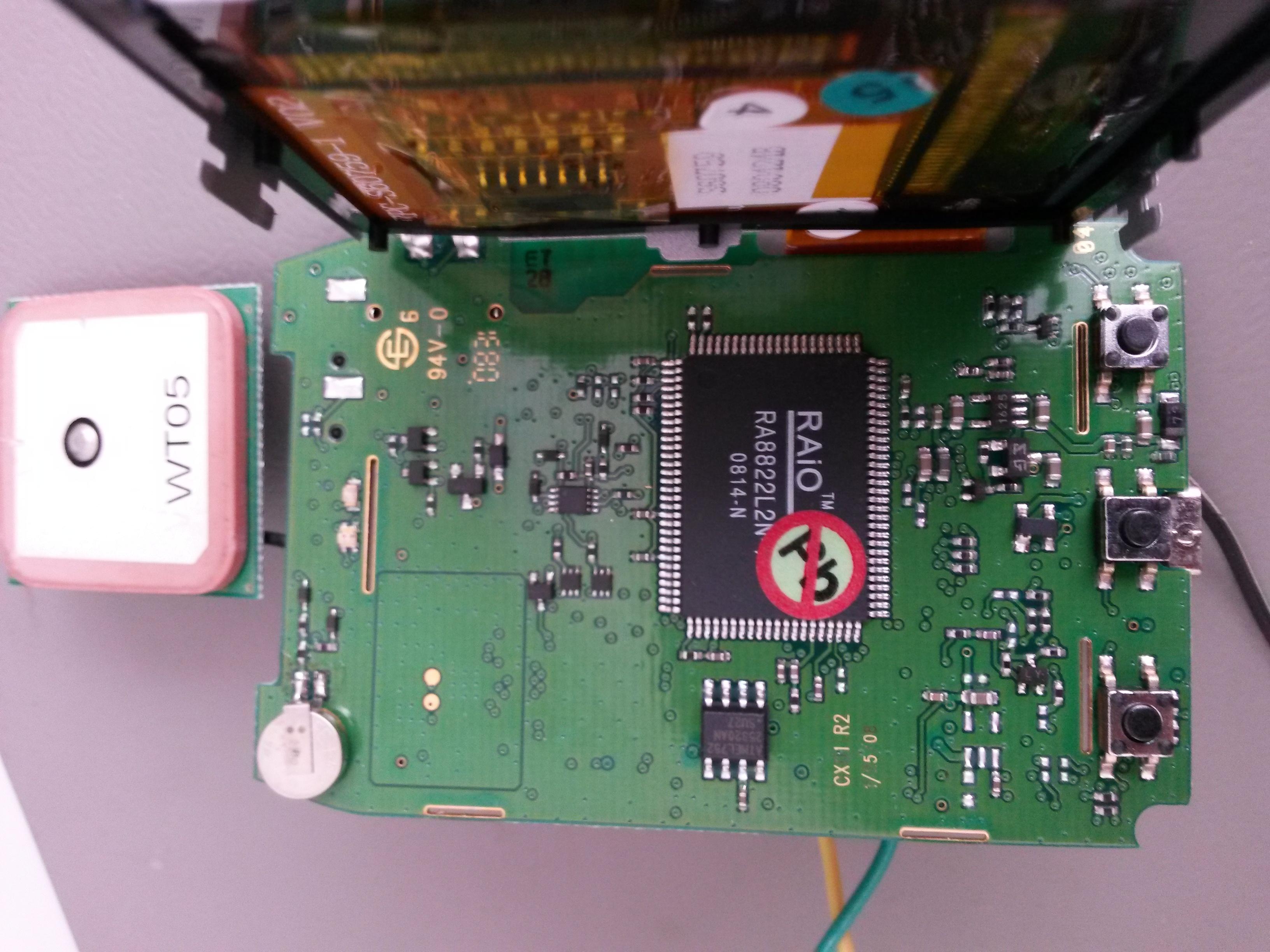

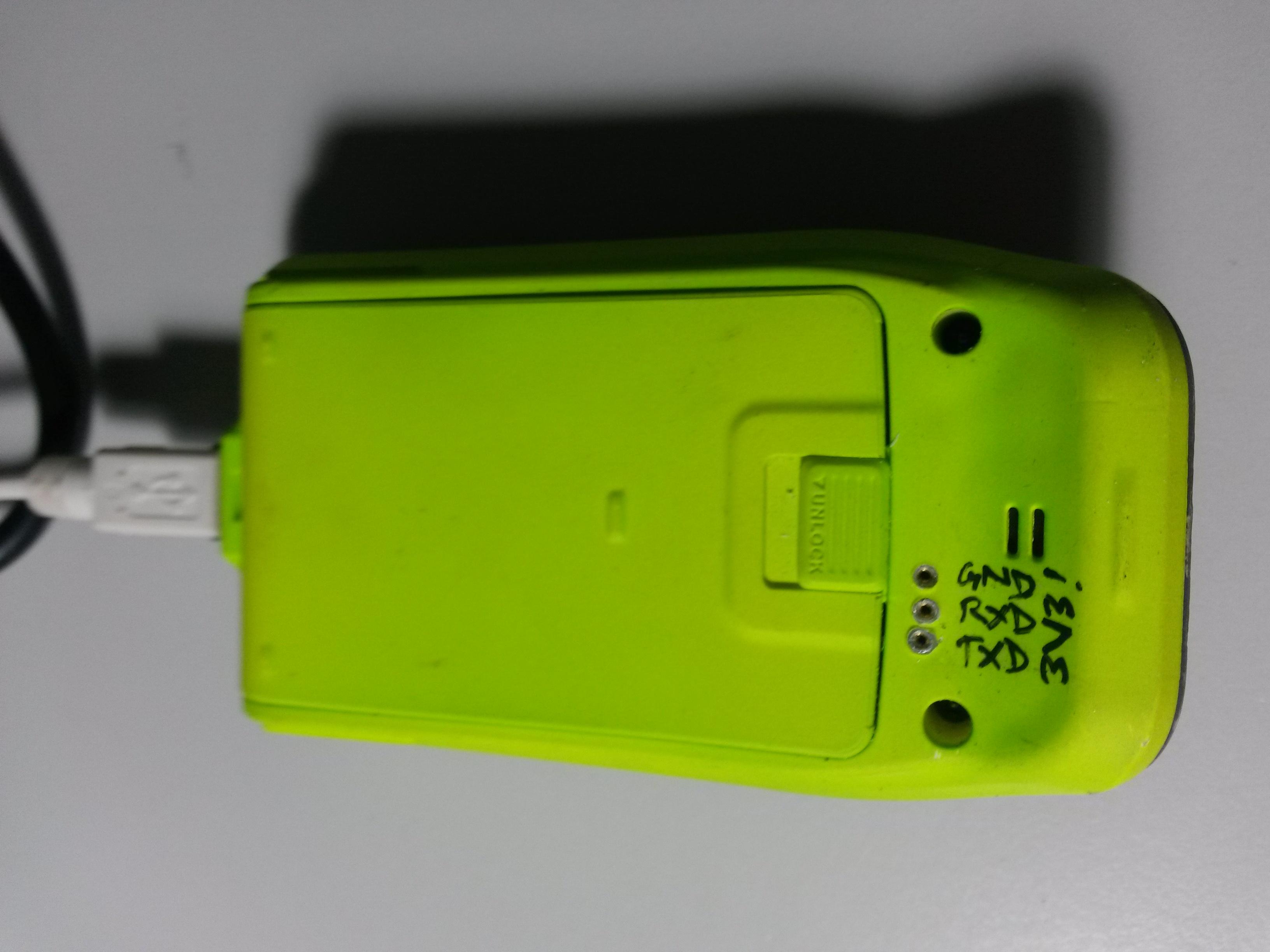

Pictures

(potato quality)

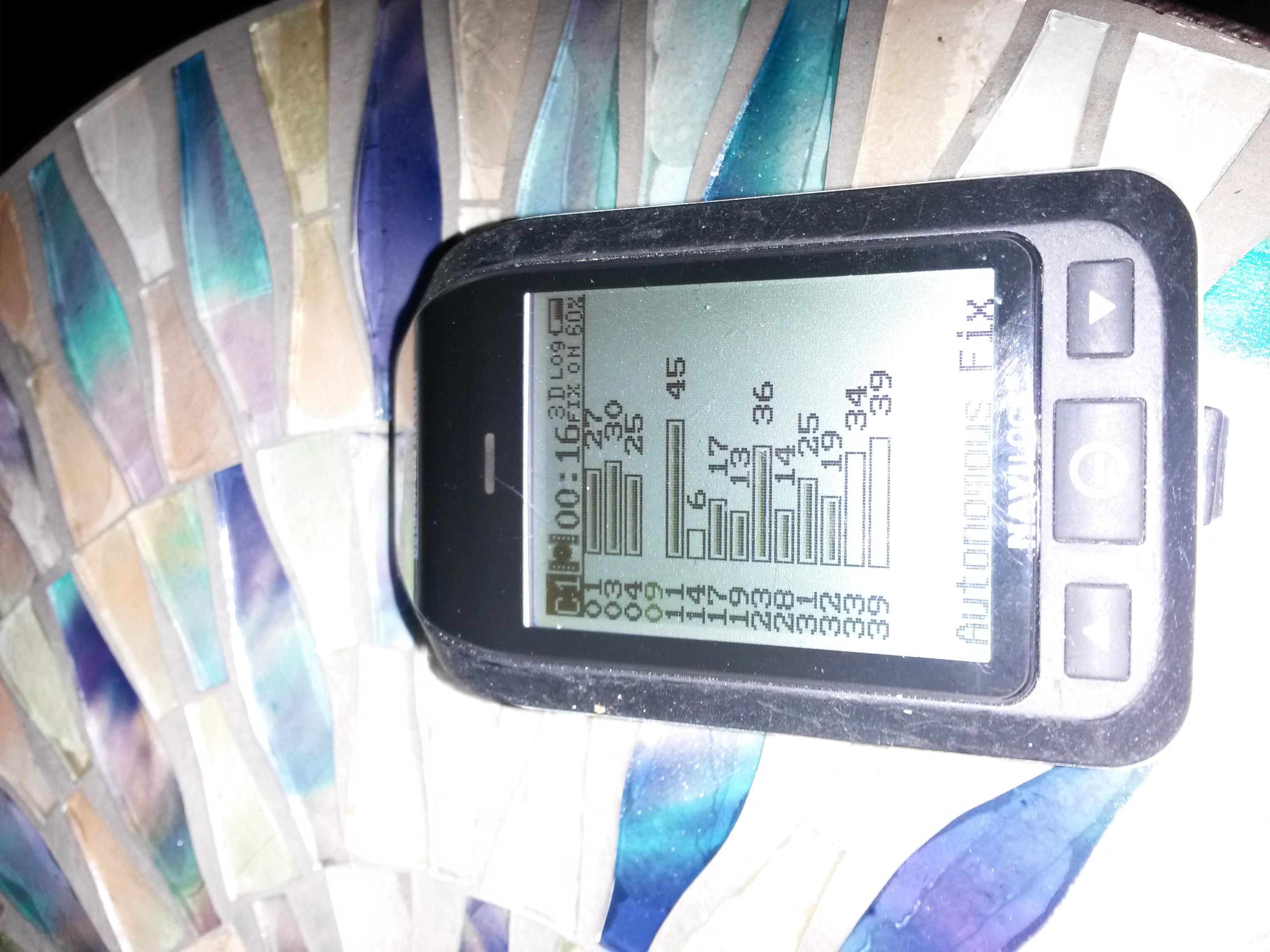

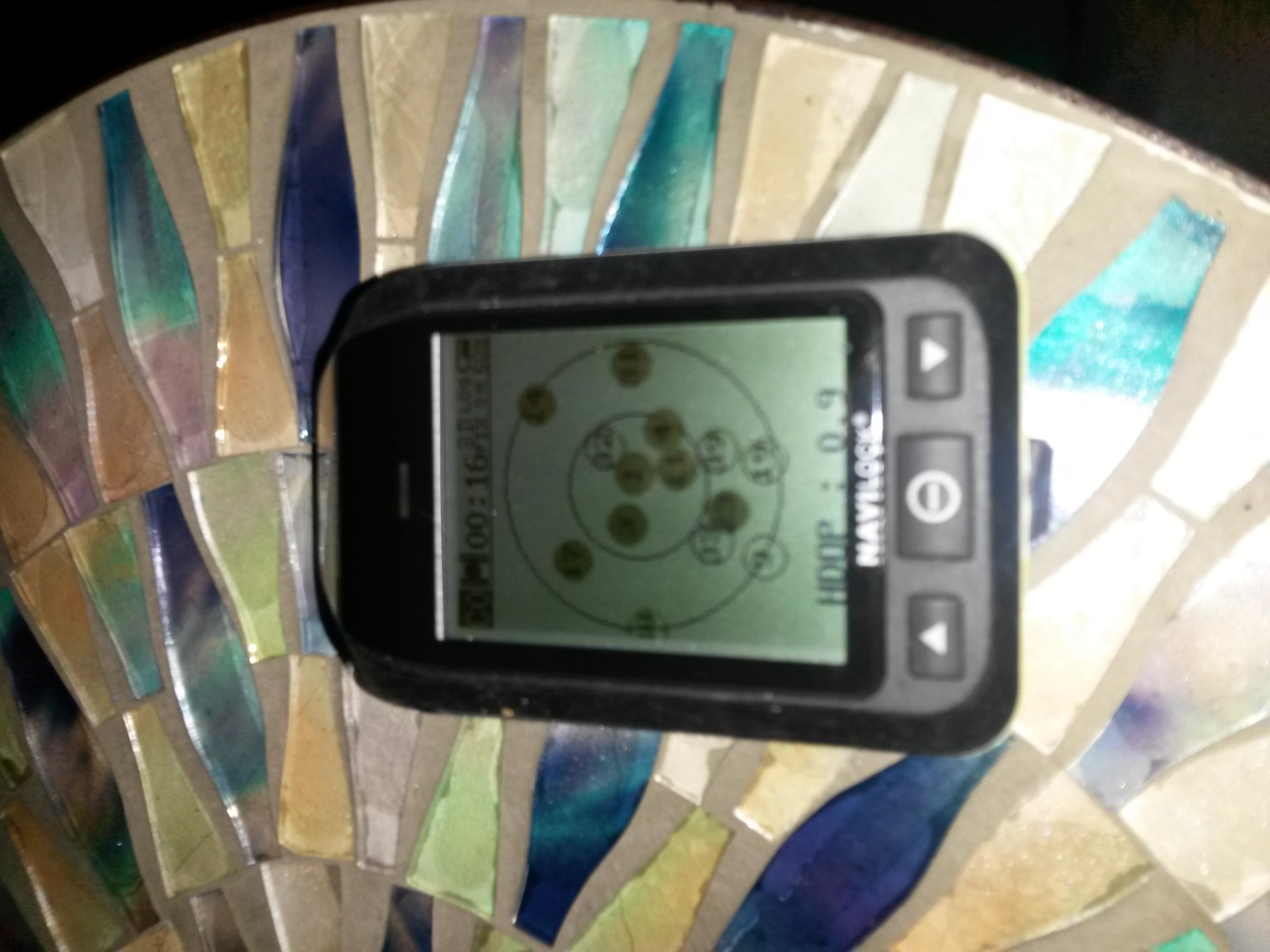

It works great!

Configuration

• UBX-CFG-NMEA B5 62 06 17 14 00 00 23 00 00 00 00 00 00 00 01 01 01 00 00 00 00 00 00 00 00 57 10
  • NMEA Version = 2.3
  • Max SV per Talker Id = 0 (Standard)
  • Numbering used for SVs not supported by NMEA = 0 - Strict (no output)
  • Main Talker ID = 1 - GP (GPS)
  • GSV Talker ID = 1 - User main Talker ID
• UBX-CFG-GNSS B5 62 06 3E 2C 00 00 00 20 05 00 08 10 00 01 00 01 01 01 01 03 00 01 00 01 01 03 08 10 00 00 00 01 01 05 00 03 00 00 00 01 01 06 08 0E 00 00 00 01 01 FD 2D
  • enable GPS and SBAS, disable all others
• UBX-CFG-NAVX5 B5 62 06 23 28 00 00 00 4C 66 00 00 00 00 00 00 03 14 06 00 00 00 00 01 DC 06 00 00 00 00 00 00 00 01 00 00 64 00 00 00 00 00 00 00 00 00 68 37
  • Use AssistNow Autonomous = yes
• UBX-CFG-TP5 B5 62 06 31 20 00 00 01 00 00 32 00 00 00 90 D0 03 00 40 42 0F 00 F0 49 02 00 60 AE 0A 00 00 00 00 00 77 00 00 00 48 65
  • blinking 250/150ms during acquisition
  • blinking 300/1000ms while fixing

See also

• wintectool

created: 2015-06-27, updated: 2020-07-12
